Overview

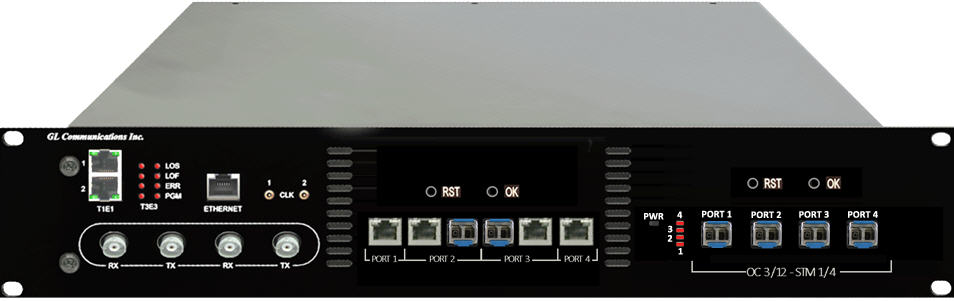

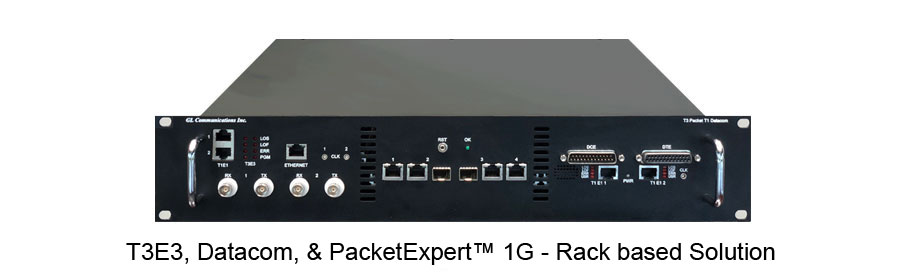

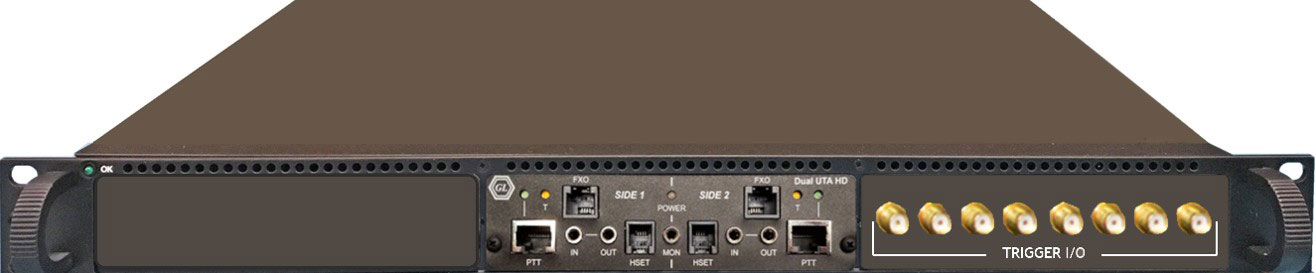

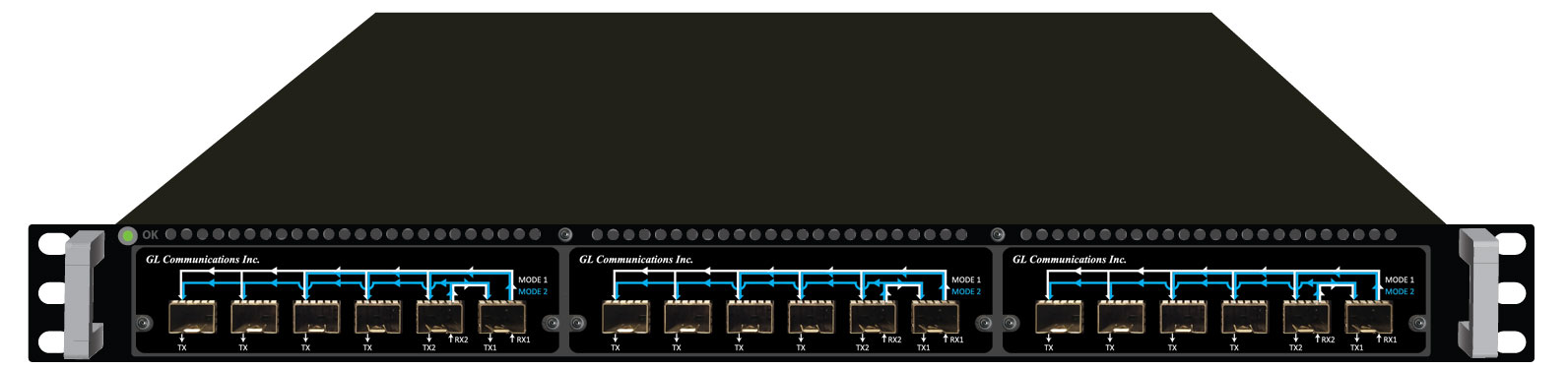

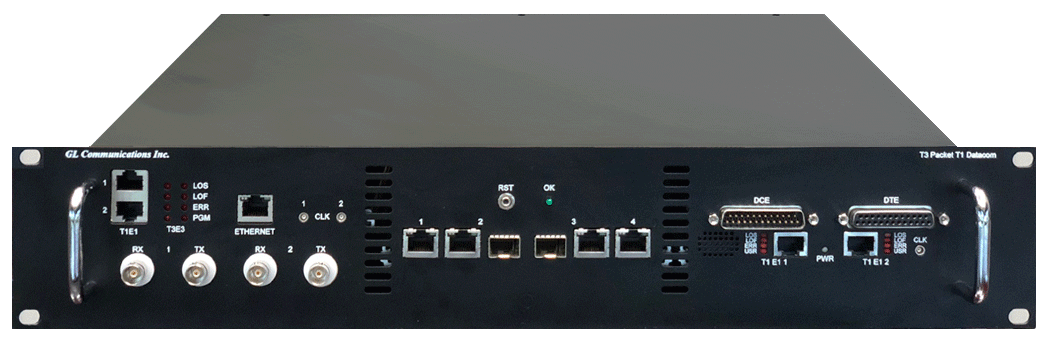

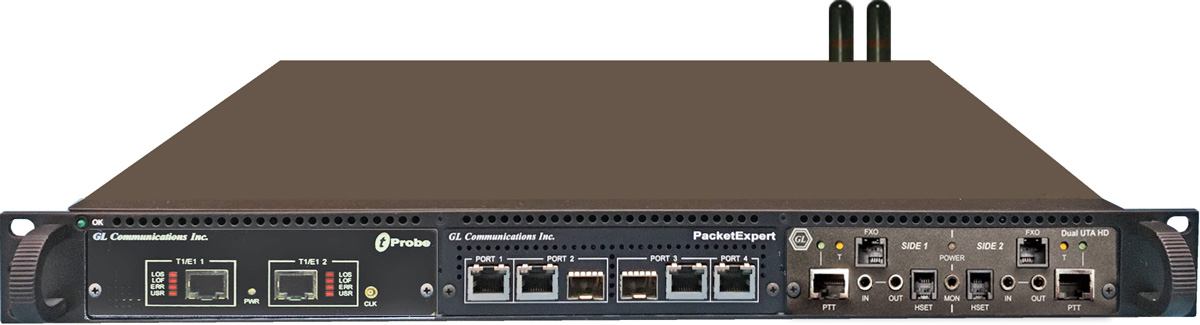

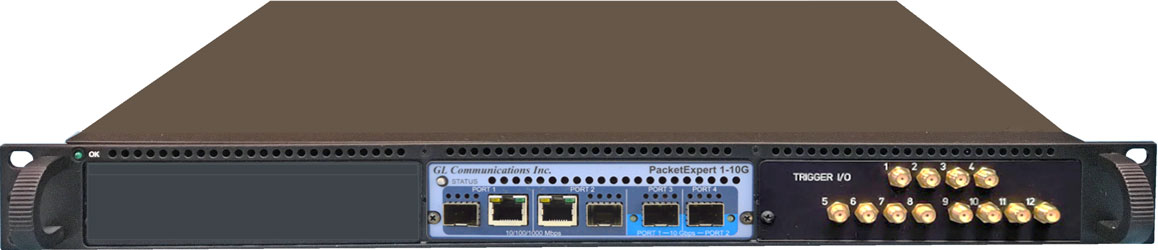

Most equipment manufacturers and large enterprises prefer rack-based test tools as they are compact and higher density form factor solution for testing, monitoring, and troubleshooting network conditions. GL’s Multiple TDM Optical and Packet (mTOP™) rack enclosure can house any combination of USB based test equipment which are easily deployed and securely fixed to an equipment rack to provide extraordinary scalability to test switches, routers and end-to-end networks. These rack based platforms incorporates the basic test unit along with the necessary PC hardware, Windows® 10 64-bit operating system and remote accessibility via scripting and remote desktop. There are no moving parts with the unit, so reliability and longevity are integral.

GL’s latest mTOP™ Probe stand-alone hardware variant is an all-in-one self-contained test instrument. The mTOP™ Probe can include any of the multiple TDM Optical and Packet interfaces USB device combined with the PC into one single box. The comprehensive mTOP™ Probe hardware unit is designed for easier portability and convenient for field testing which incorporates the testing features for multiple interfaces along with necessary PC hardware in a single box. GL’s USB based test equipment - PacketExpert™ (Ethernet), tProbe™ (T1 E1), USB T3 E3 (TDM), Dual UTAs (Analog/Wireless), and LightSpeed1000™ (SONET SDH) to support multiple interfaces in a compact rack space or included in a portable Probe unit.

Features

  • Rack mountable, high density, multi-device support

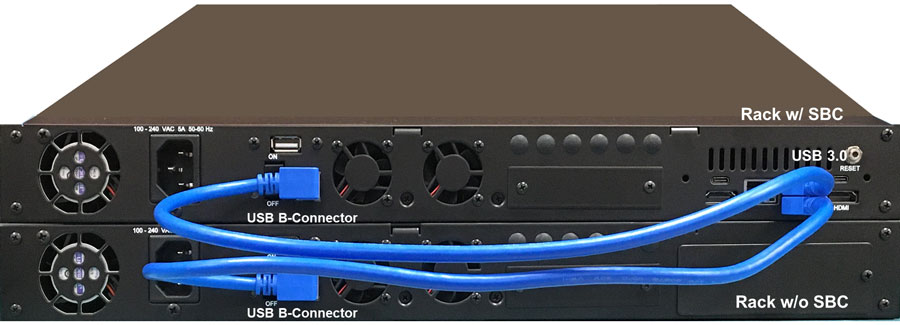

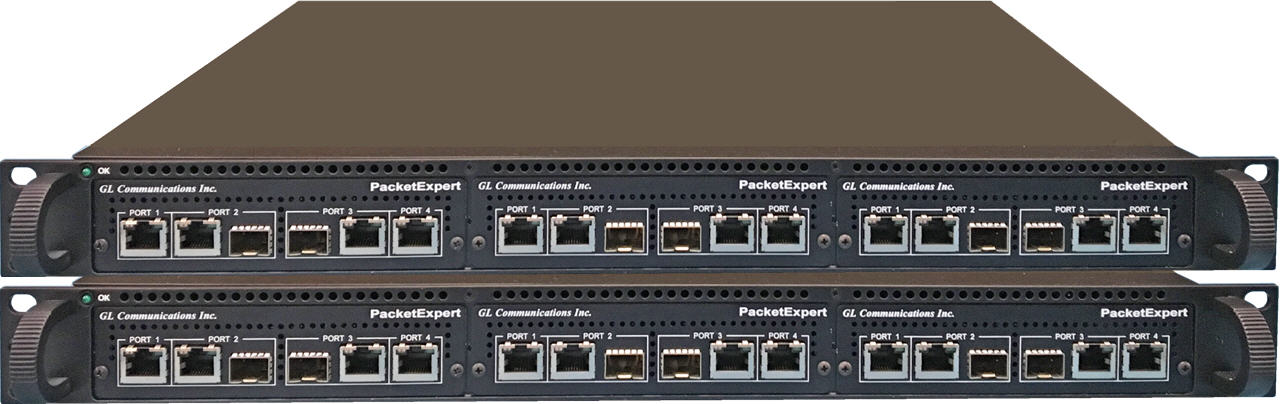

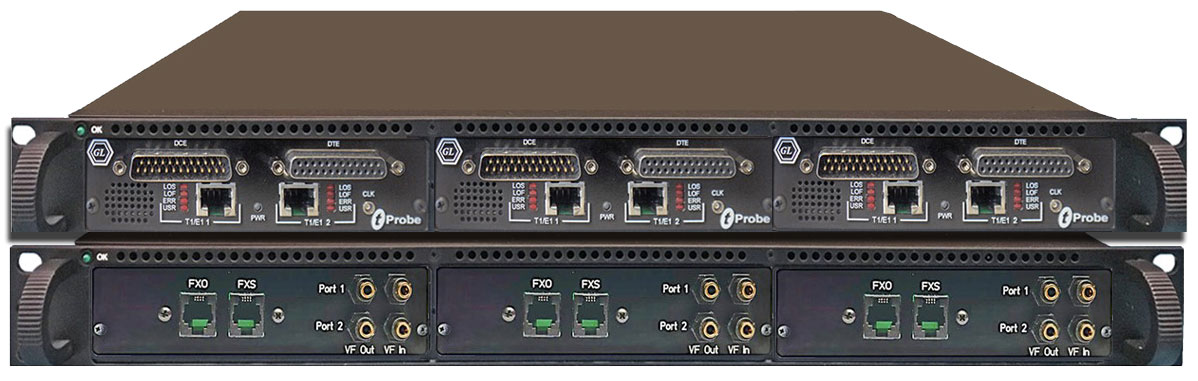

  • Stack multiple rack units to handle large number of ports
  • mTOP™ Probe unit for portability and convenient field testing
  • Flexibility in running multiple interface tests from a single mTOP™ Probe portable unit
  • Includes all necessary PC hardware with Windows® OS
  • Automation and remote accessibility via scripting and Ethernet remote desktop
  • All interfaces can run simultaneously and independently
  • Real-time results are presented per port and all-port basis in both tabular as well as graphical formats
  • Scalable solution for unlimited number of FXO ports
  • Wide Band (WB) and Narrow Band (NB) support (for HD and SD Audio)
  • Multiple users and tests per system
  • All test results, measurements can be sent to centralized database
  • Extensive simulation and analysis features

mTOP™ SBC Specifications

mTOP™ Rack System mTOP™ Probe Unit
  • USB 3.0 and 2.0 ports (with support for mouse/keyboard)
  • ATX Power Supply
  • Ethernet 2.5GigE port
  • 256 GB Hard drive, 8G Memory (Min)
  • Intel Core i3 or optional i7 NUC Equivalent
  • USB Type C Ports
  • Two HDMI ports for display
  • Windows® 11 64-bit Pro Operating System
  • USB 3.0 and 2.0 ports (with support for mouse/keyboard)
  • 12V, 3Amps Power Supply
  • Ethernet 2.5GigE port
  • 256 GB Hard drive, 8G Memory (Min)
  • Intel Core i3 or optional i7 NUC Equivalent
  • USB Type C Ports
  • Two HDMI ports for display
  • Windows® 11 64-bit Pro Operating System

mTOP™ Probe Solution

The new Multiple TDM Optical and Packet mTOP™ Probe version is a portable hardware unit, which can house any of the GL’s USB based hardware test equipment such as PacketExpert™, tProbe™ (T1 E1), USB T3 E3, Dual UTAs, LightSpeed1000™ and SonetExpert™ to support multiple interfaces testing. The comprehensive mTOP™ Probe hardware unit is designed for easier portability and can be placed in a backpack. It is convenient for field testing which incorporates the testing features for multiple interfaces along with necessary PC hardware in a single box.

The computer contains USB and HDMI interfaces for local access. It also has a 2.5GigE Ethernet port for remote access via Remote Desktop Protocol. Additionally, an external Wi-Fi adaptor is also available, which can be plugged to USB 3.0 and 2.0 ports on the rear panel of the unit supporting wireless connectivity.

Following depicts the front and rear panel of the mTOP™ Probe unit. The front panel slot can house any of the GL’s USB hardware test equipment and the rear panel includes various PC interfaces embedded in the mTOP™ Probe unit:

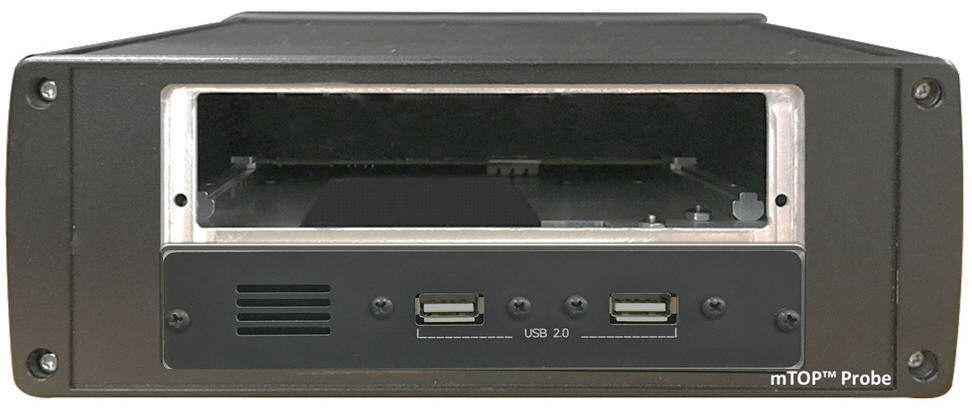

mTOP™ Probe Front Panel

mTOP™ Probe
(Front Panel View)

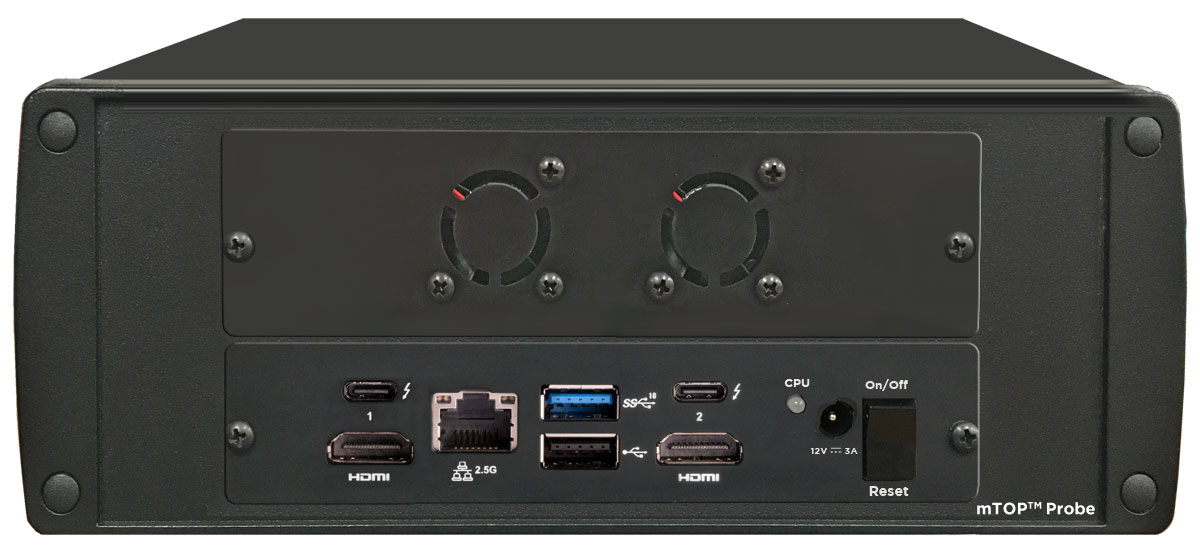

mTOP™ Probe Rear Panel

mTOP™ Probe
(Rear Panel View)

External Dimensions:

  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches

Connection Interfaces:

  • 2x USB 3.0 and 2.0 ports on the rear panel (can be used as Keyboard/Mouse ports as well as connecting to an external wi-fi adaptor)
  • 1x 2.5GigE Ethernet port
  • 2x USB Type C ports
  • 2x HDMI interface
  • 1x CPU LED

PC Specifications:

  • In-built mSATA solid-state hard drive (256 GB)
  • In-built standard 8G memory
  • Intel Core i3 or optional i7 NUC equivalent
  • Windows® 11 64-bit Pro Operating System

Power Supply:

  • 12 Volts, 3 Amps

There are no moving parts with the mTOP™ Probe so reliability and longevity are integral.

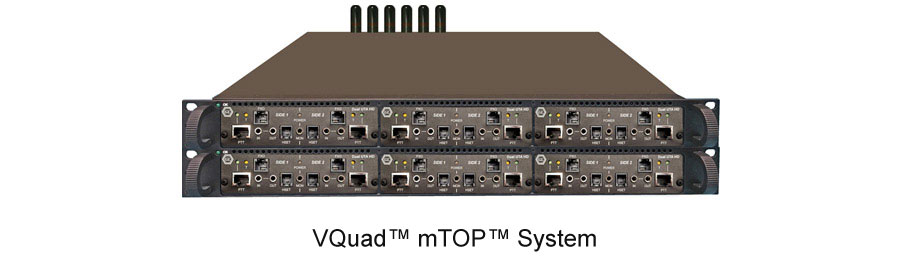

mTOP™ VQuad™ Dual UTA HD Probe

GL's VQuad™ mTOP™ Probe solution is an all-in-one self-contained VQuad™ with Dual UTA HD test instrument designed for conveniently testing multi-interface telephony devices for Smartphone/Handset Benchmark drive testing.

A single VQuad™ mTOP™ Probe includes dual independent sides connecting to any type of telephony devices across various interfaces including FXO, 4-wire Analog, PTT, Handset Phones, Mobile audio, and Bluetooth. It has the ability to generate Wireless as well as 2-Wire and 4-wire analog calls using same hardware. You can perform simultaneous Voice, Video, Data, Fax, and Time Delay Measurements from a single VQuad™ mTOP™ Probe unit and the embedded SBC allows it to be conveniently used for field/drive testing.

pdf icon VQuad™ mTOP™ Solution Brochure

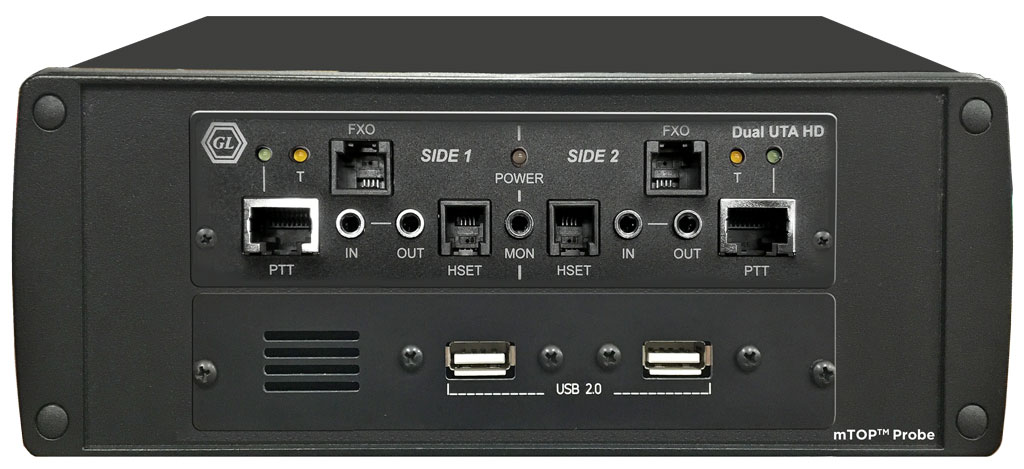

VQuad™ Dual UTA HD mTOP™ Probe

VQuad™ Dual UTA HD mTOP™ Probe
(Front Panel View)

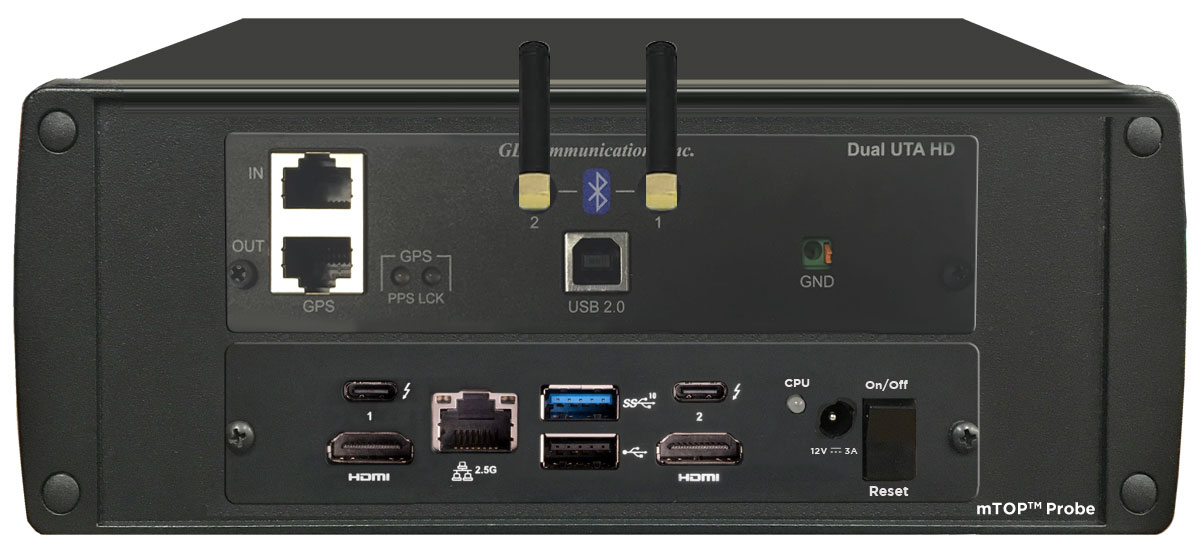

VQuad™ Dual UTA HD mTOP™ Probe

VQuad™ Dual UTA HD mTOP™ Probe
(Rear Panel View)

  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • DUAL UTA HD interfaces (Side 1 & 2) -
    • 3.5mm In/Out Jacks (Balanced Audio)
    • RJ-11 Jacks (FXO)
    • RJ-22 Jacks (Handset/Handset Base)
    • 3.5mm Audio (Monitor)
    • Dual RJ-45 PTT Jacks
    • Dual RJ-45 GPS (In/Out) Jacks
    • Bluetooth® Antennas
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12v/ 3A Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT005/MT005E
    • VQT251
    • DUAL UTA Options
    • VQuad™ Options

Refer to VQT Price Lists

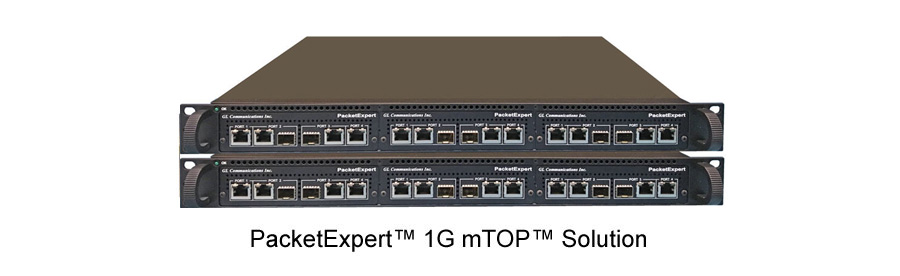

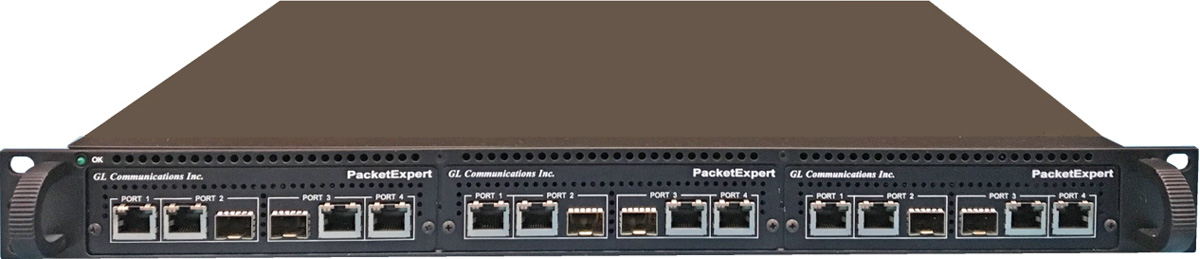

mTOP™ 1G Multi-Port Ethernet Probe

PacketExpert™ mTOP™ Probe is a portable Quad Port Ethernet/VLAN/MPLS/IP/UDP Tester with 4 Electrical Ethernet Ports (10/100/1000 Mbps) and 2 Optical Ports (100/1000 Mbps). Each GigE port provides independent Ethernet/VLAN/MPLS/IP/UDP testing at wire speed for applications such as BERT, RFC 2544, and Loopback. BERT is implemented for all layers. RFC 2544 is applicable for Layers 2, 2.5, and 3, and Loopback is applicable for Layers 2, 3, and 4. Further, PacketExpert™ also supports optional applications for advanced testing such as Record and Playback, ExpertSAM™, PacketBroker, Multi Stream UDP/TCP Traffic Generator and Analyzer, and ExpertTCP™.

It truly takes confusion out of Ethernet / IP testing at all protocol layers - from Layer1 frames to IP/UDP packets. It can be used as a general purpose Ethernet to IP performance analysis tool for 10 Mbps, 100 Mbps and 1 Gbps Ethernet local area networks and wide area networks (WAN).

Two of the 4 ports in the PacketExpert™ unit support both electrical and optical interfaces per unit, enabling testing on optical fiber links as well. The electrical ports support 10/100/1000 Mbps, and optical ports support 100/1000 Mbps using SFP. The embedded SBC makes it conveniently be used for field testing.

pdf PacketExpert™ 1G Multi-Port Ethernet IP Tester Brochure

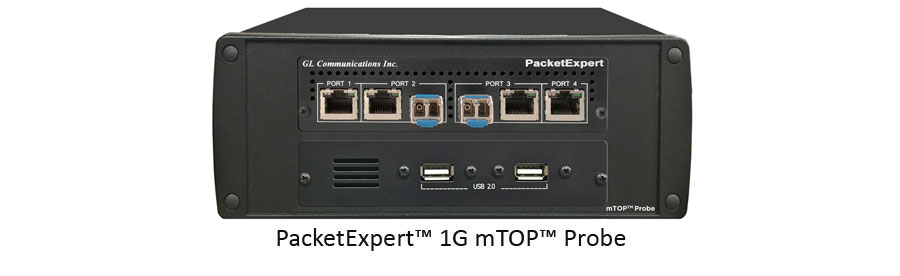

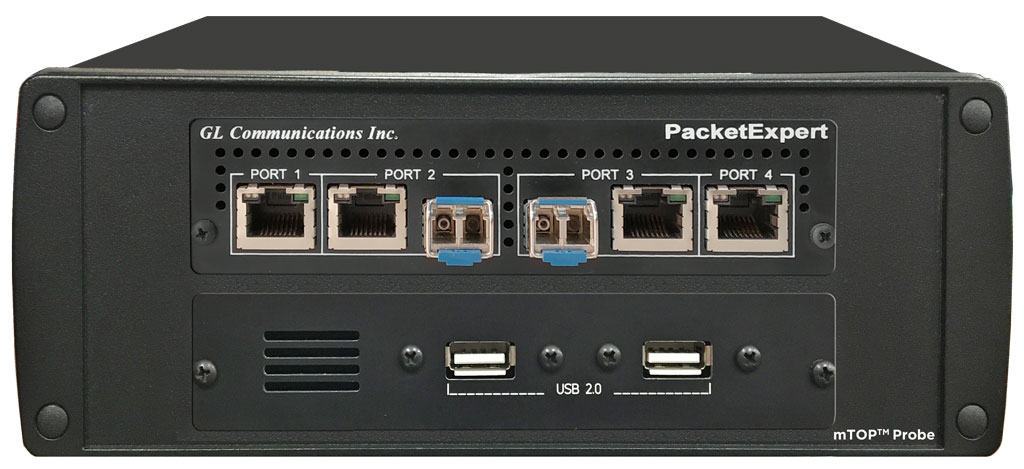

PacketExpert™ 1G mTOP™ Probe
PacketExpert™ 1G mTOP™ Probe
(Front Panel View)


PacketExpert™ 1G mTOP™ Probe
PacketExpert™ 1G mTOP™ Probe
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • PacketExpert™ 1G interfaces (1 unit)
    • 4x Total Ethernet ports
    • 2x 10/100/1000 Base-T Electrical only
    • 2x 1000 Base-X Optical OR 10/100/1000 Base-T Electrical
    • Single Mode or Multi Mode Fiber SFP support with LC connector
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12V/3Amps Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT005/MT005E
    • PXE100
    • PacketExpert Options

Refer to Packet /Ethernet Series Price Lists

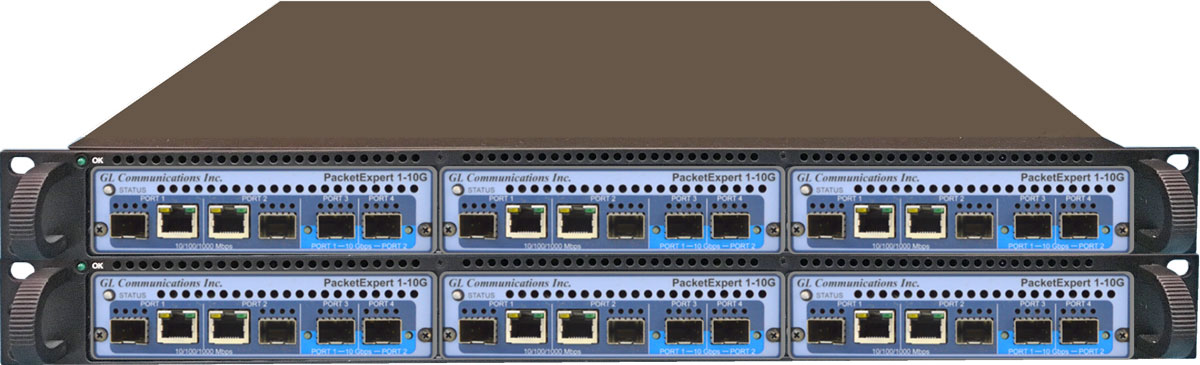

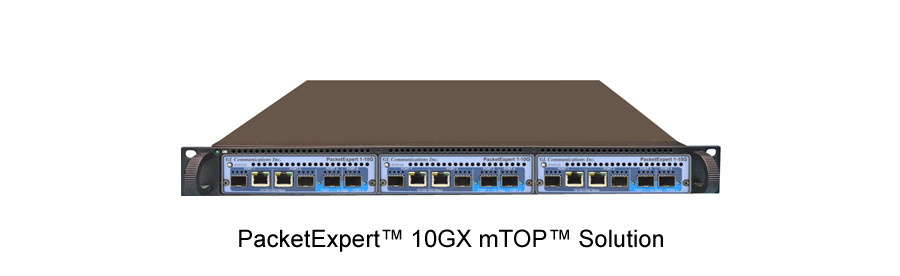

mTOP™ 10G/1G Multi-Port Ethernet Probe

The sleek design of PacketExpert™ 10GX (PXN100) portable hardware allows the unit to be easily placed in a mTOP™ Probe unit which includes necessary SBC making it suitable for field testing. It is a perfect ethernet test tool for customers who require portable and remote accessibility. The PacketExpert™ 10GX hardware interfaces include two 1/2.5/10 Gbps Ethernet ports, and two 10/100/1000 Mbps Electrical/Optical capable ports. The 10/1 Gbps Optical ports can be down shifted to support 1Gbps Electrical ports, thus offering 4 Electrical / 4 Optical 1 Gbps ports for ethernet testing. The compact hardware unit optionally includes user configurable TTL trigger ports as an important enhancement.

pdf PacketExpert 10GX (PXN100) mTOP™ Ethernet IP Tester Brochure

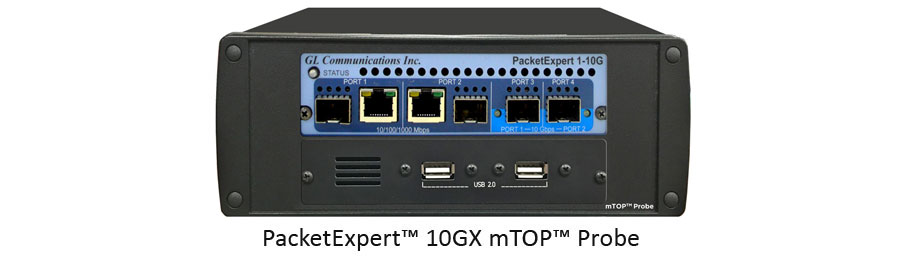

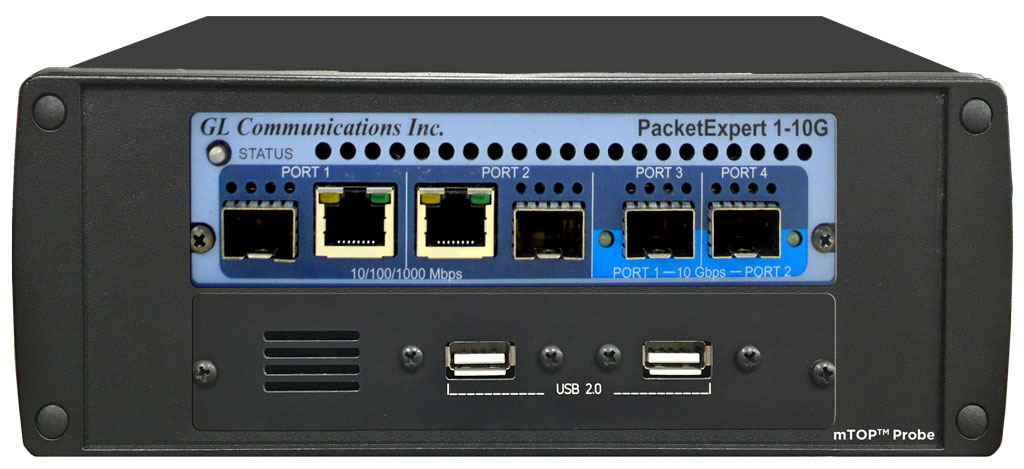

PacketExpert™ 10GX mTOP™ Probe
PacketExpert™ 10GX mTOP™ Probe
(Front Panel View)

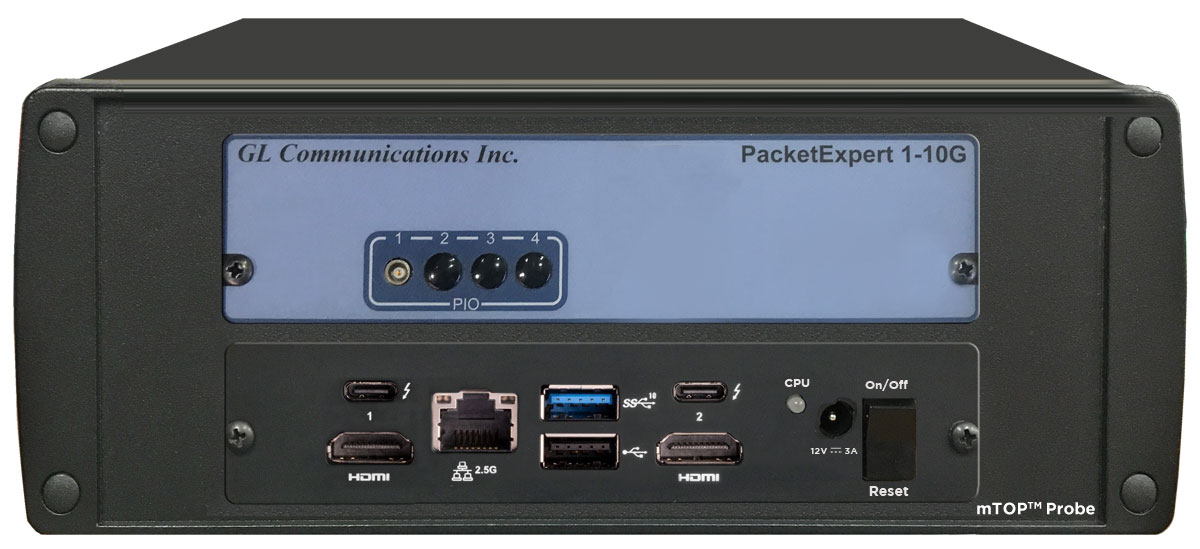

PacketExpert™ 10GX mTOP™ Probe
PacketExpert™ 10GX mTOP™ Probe
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • PacketExpert™ 10GX (PXN100) interfaces
    • 4x 1G Base-X Optical OR 10/100/1000 Base-T Electrical
    • 2x 10G Base-SR, -LR -ER Optical option
    • 2 x 100 Mbps Base-FX optical interface
    • Single Mode or Multi Mode Fiber SFP support with LC connector
    • Optional 4-Port SMA Jack Trigger Board (TTL Input/Output)
  • External USB based Wi-Fi adaptor

SBC specifications -

  • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
  • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12V/3Amps Power Supply
  • 256 GB Hard drive, 8G Memory (Min)
  • Two HDMI ports for display

Temperature

  • Operating Temperature:
    • 0° C to +50° C (only up to operating altitude of 5000 feet, and for Optical SFPs only i.e. Non Electrical SFPs)
    • +5° to +40° C (for operating altitude up to 10,000 feet, and for both Electrical and Optical SFPs)
  • Non-Operating Temperature:
    • -30° to +60° C

Humidity

  • Operating Humidity: 0% to 80% RH
  • Non-Operating Humidity: 0% to 95% RH

Altitude

  • Operating Altitude: up to 10,000 feet
  • Non-Operating Altitude: up to 50,000 feet

Order information -

  • MT005/MT005E
  • PXN100
  • PacketExpert™ Options

Refer to IP-Ethernet-Testers-PacketExpert-Platforms

mTOP™ Packet/SonetExpert™ Probe

PacketExpert™ hardware is used for both Packet/SonetExpert™.



PDF SonetExpert™ Channelized (SEC) Analyzer Brochure

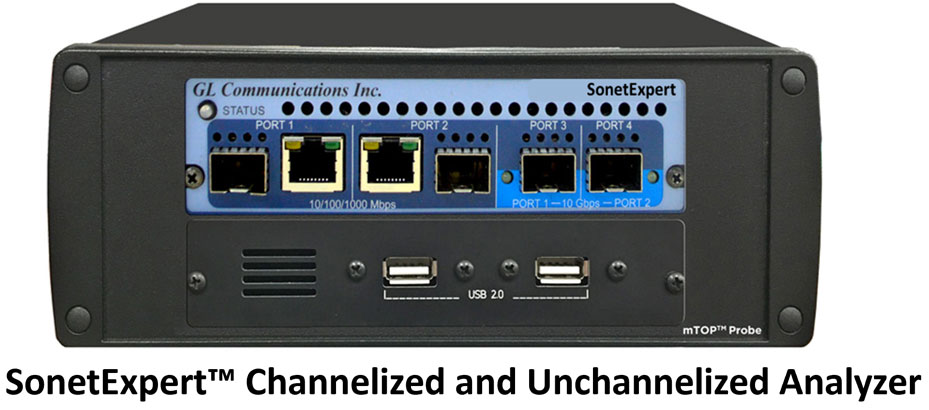

mTOP™ Packet/SonetExpert™ Probe
Packet/SonetExpert™ mTOP™ Probe
(Front Panel View)

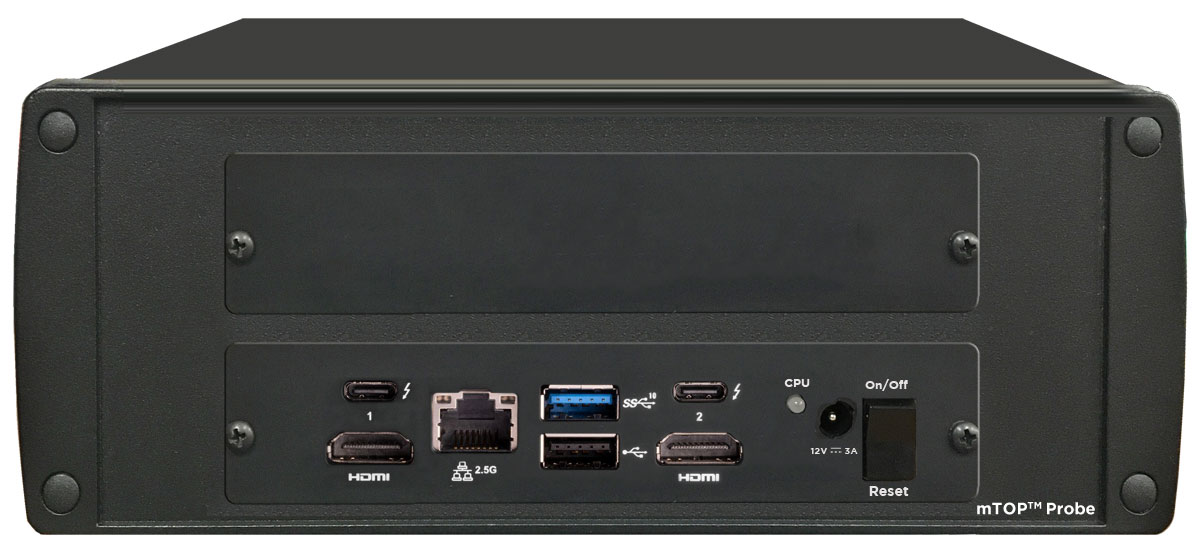

mTOP™ Packet/SonetExpert™ Probe
Packet/SonetExpert™ mTOP™ Probe
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • Packet/SonetExpert™ interfaces
    • 4x 1G Base-X Optical OR 10/100/1000 Base-T Electrical
    • 2x 10G Base-SR, -LR -ER Optical option
    • 2 x 100 Mbps Base-FX optical interface
    • Single Mode or Multi Mode Fiber SFP support with LC connector
    • Optional 4-Port SMA Jack Trigger Board (TTL Input/Output)
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12v/ 3A Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display

Refer to Packet/SonetExpert-Platforms

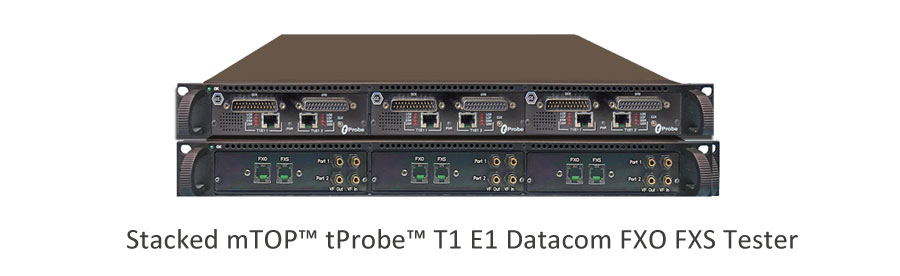

T1 E1 FXO FXS & Datacom mTOP™ Probe

mTOP™ Probe T1 E1 Datacom Tester unit includes GL's USB based tProbe™ hardware unit with Datacom interfaces to test and verify the data communications equipment and circuits - specifically serial interfaces that provide clock, data, and control signals. Software selectable modes are provided to emulate DTE, DCE and non-intrusive monitoring for both synchronous (sync), and asynchronous (async) modes.

mTOP™ T1 E1 FXO FXS Probe unit includes GL’s USB based tProbe™ hardware unit with T1 E1 and FXO FXS interfaces for unified testing experience of TDM and Analog technologies.

The FXO port on the mTOP™ Probe unit permits non-intrusive capture and analysis of voice-band signals from a two-wire telephone line. The FXS port emulates a two-wire FXS service such as a telephone wall jack. The T1 E1 interface monitors the T1 E1 line conditions such as frame errors, violations, alarms, frequency, power level, and clock (or frame/bit) slips. Comprehensive Analysis / Emulation of Voice, Data, Fax, Protocol, Analog, and Digital signals, including Echo and Voice Quality testing.

mTOP™ Probe unit includes necessary SBC, which makes it portable unit suitable for field testing. Shown below is a Probe based T1 E1 FXO FXS Emulator and Analyzer unit. Such customized Probe unit serves the purpose of handling multiple communications lines and test complex functionalities.

pngT3T1 E3E1 Datacom Multi Interface mTOP™ Solution Brochure

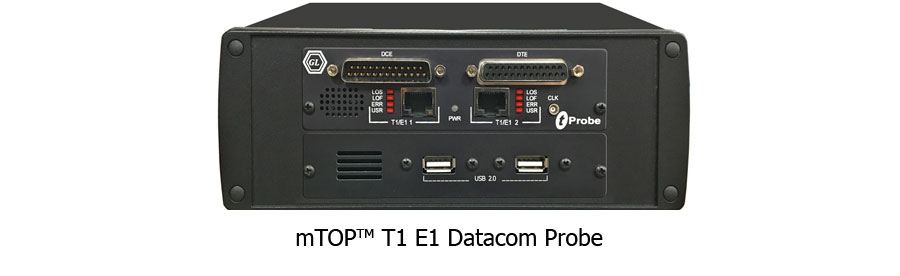

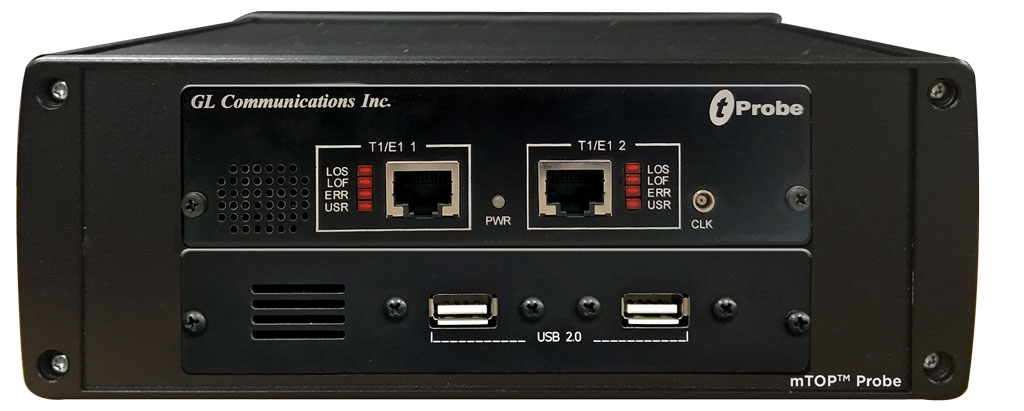

mTOP™ Probe T1 E1 Datacom Tester
mTOP™ Probe T1 E1 Datacom Tester
(Front Panel View)


mTOP™Probe T1 E1 Datacom Tester
mTOP™Probe T1 E1 Datacom Tester
(Rear Panel View)

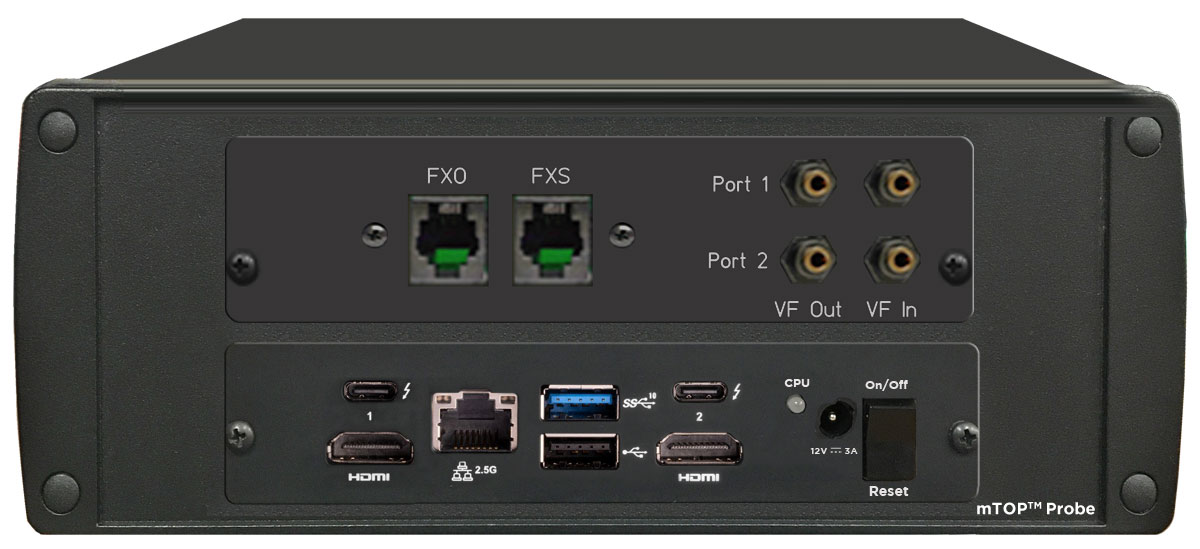

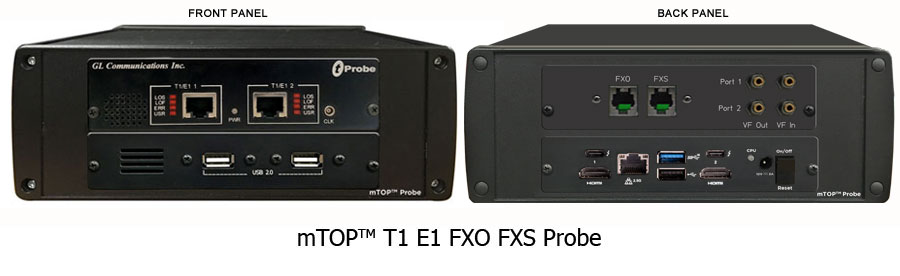

mTOP™ T1 E1 FXO FXS Probe
mTOP™ T1 E1 FXO FXS Probe
(Front Panel View)


mTOP™ T1 E1 FXO FXS Probe
mTOP™ T1 E1 FXO FXS Probe
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • USB tProbe T1 E1 interfaces
    • 2x RJ-48c T1 E1 Connectors
    • 1x MCX Coaxial External Clock Connector
    • Power LED
  • Datacom Interface
    • Dual DB25 Connectors Support:
      • DTE/DCE
      • RS-232/V.28
      • X.21/V.11
      • RS-449/V.36 /V.10/V.11
      • EIA-530/V.10/V.11
      • EIA-530A/V.10/V.11
      • V.35/V.28
  • USB FXO FXS interfaces
    • 2x RJ-11 2-wire FXO FXS ports
    • 4x 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Jacks (TX & RX)
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12v/ 3A Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT005/MT005E
    • PTE001/PTE025
    • SA000C
    • T1 E1 Analyzer Options

Refer to T1 E1 Price List

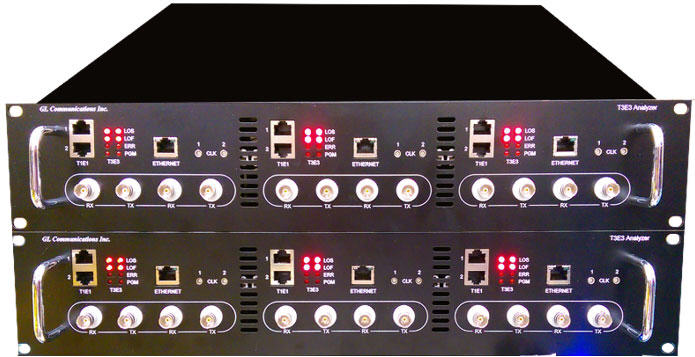

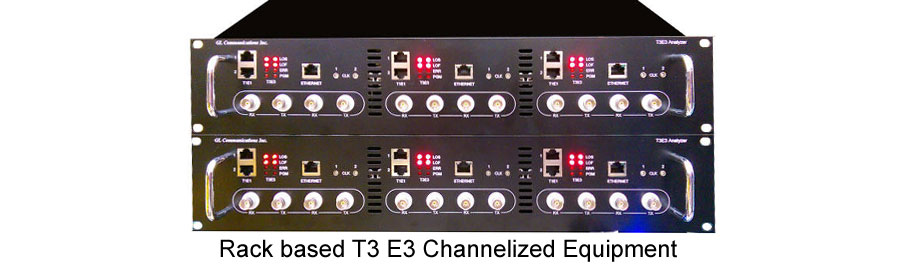

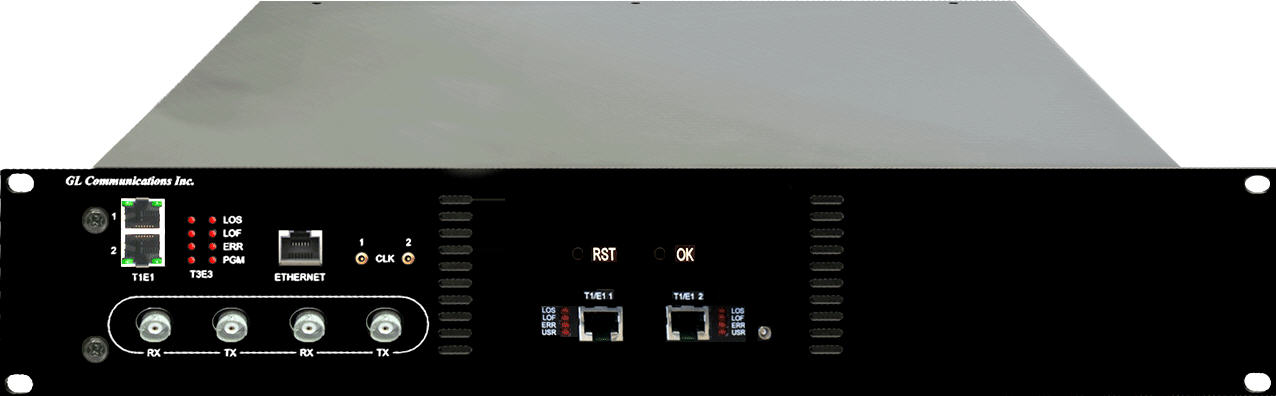

mTOP™ T3 E3 Probe

mTOP™ T3 E3 Probe unit includes GL’s USB based T3 E3 Analyzer hardware unit combined with necessary PC interface, which makes it portable stand-alone unit suitable for field testing. A single portable USB-based unit supports 2x T3 E3 ports per unit.

GL’s T3 E3 Analyzer is capable of processing signaling, voice, and data full T3 (DS3) or E3 data streams, dropping and inserting T1 (DS1) or E1, and analysis of HDLC, ATM, Frame Relay, and PPP Protocols. It includes various signal testing capabilities for Unchannelized (Unstructured) and Channelized (Structured) T3 E3 Traffic. Shown below is a Probe based T3 E3 Analyzer unit.

png T3 E3 Multi Interface mTOP™ Solution Brochure

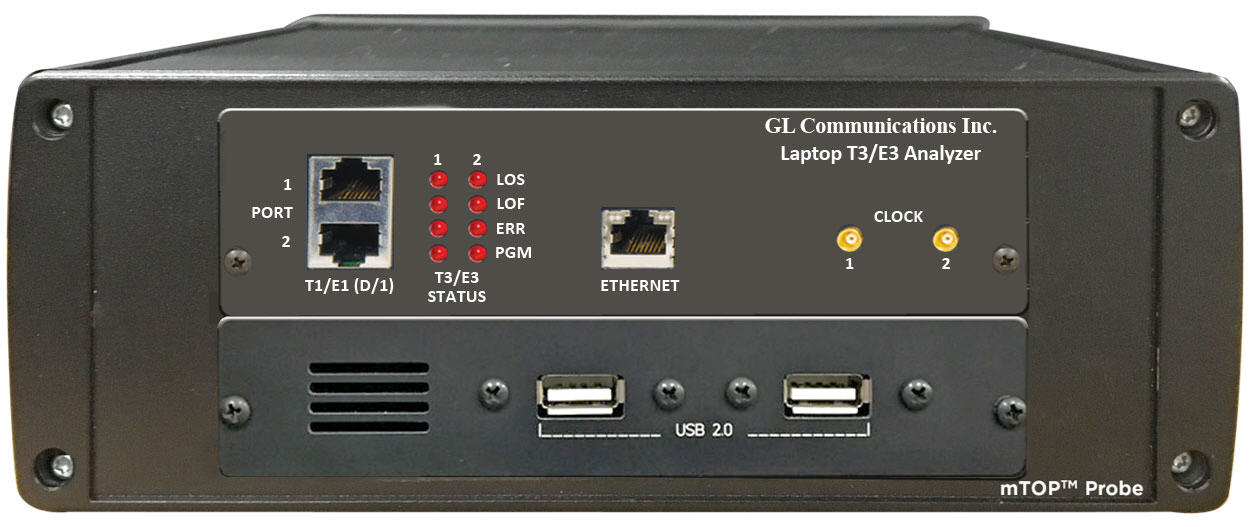

mTOP™ T3 E3 Probe
mTOP™ T3 E3 Probe
(Front Panel View)

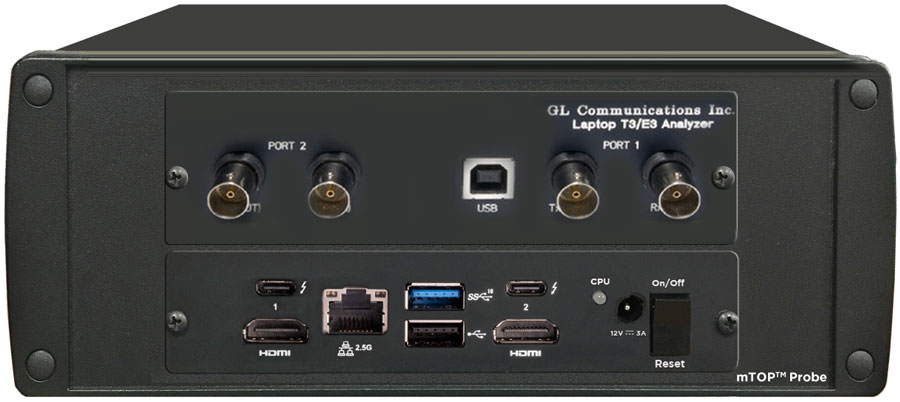

mTOP™ T3 E3 Probe
mTOP™ T3 E3 Probe
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • USB T3 E3 interfaces
    • DS3/E3 75O BNC (Tx, Rx) Ports
    • DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert
    • MCX External Clock Ports
    • USB 3.0 and 2.0 Connected to a USB Ports
    • Internally powered by Power Supply
    • 1000 Mbps Ethernet Port
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12v/ 3A Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT005/MT005E
    • TE3001
    • T3 E3 Analyzer Options

Refer to T3 E3 Price List

mTOP™ OC-3/12 STM-1/4 LightSpeed1000™ Probe

mTOP™ OC-3/12 STM-1/4 Probe unit includes GL’s USB based LightSpeed1000™ hardware unit with optical interfaces. mTOP™ Probe unit which includes necessary SBC making it suitable for field testing. It is a perfect optical test tool for customers who require portable and remote accessibility.

LightSpeed1000™hardware platform is capable of OC-3/12 and STM-1/4 wire-speed processing on quad optical ports for functions such as wire-speed recording and wire-speed playback of Unchannelized and Channelized ATM, PoS, and RAW Traffic.

pngLightSpeed1000™ OC-3/STM-1-OC-12/STM-4 mTOP™ Solution Brochure

mTOP™ Probe with LightSpeed1000™
mTOP™ Probe with LightSpeed1000™
(Front Panel View)


mTOP™ Probe with LightSpeed1000™
mTOP™ Probe with LightSpeed1000™
(Rear Panel View)
  • Length: 10.4 inches
  • Height: 3 inches
  • Width: 8.4 inches
  • LightSpeed1000™ interfaces
    • High Performance x4 PCIe Compliance with optimized DMA to perform Rx and Tx packets to/from PC memory
    • 4 Optical Ports -
      2 Unchannelized Ports (STM-1/OC-3 and STM-4/OC-12)
      2 Channelized Ports (STM-1/OC-3)
    • LOS, LOF, User-defined LEDs
  • External USB based Wi-Fi adaptor
  • SBC specifications -
    • Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, 12v/ 3A Power Supply
    • 256 GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT005/MT005E
    • LTS105
    • Lightspeed Analyzer Options

Refer to OC-3/STM-1 and OC-12/STM-4 Analysis Price List

Packet/IP Test Solutions

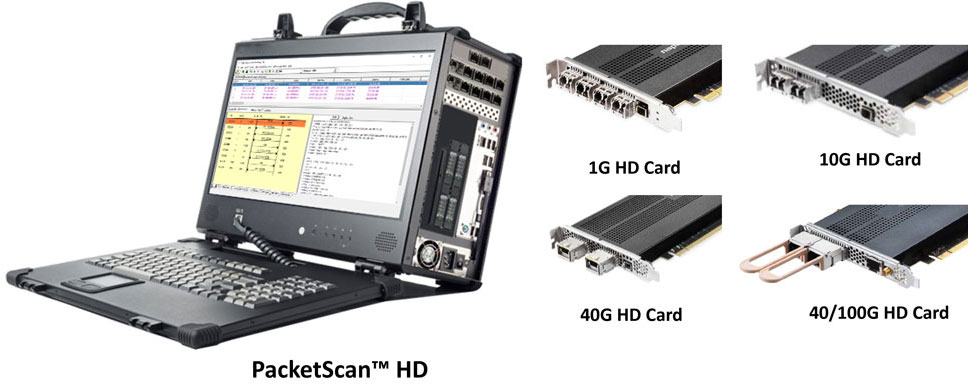

High Density Network Monitoring Appliance (PacketScan™ HD)
High Density Network Monitoring Appliance (PacketScan™ HD)

GL's PacketScan™ HD is a high density multi-protocol rack mounted Network Monitoring Tool. Some of its important features include:

  • Network Monitoring Tool w/ 4x1GigE and w/2x10GigE network interface cards that can capture and process high volumes of communication protocols over IP network
  • Supports capture and processing of up to 5000 simultaneous calls with duplex traffic
  • Advanced wirespeed filtering capability to capture the traffic of interest
  • Almost all VoIP and Wireless protocols over IP  layer can be captured and decoded for troubleshooting network problems
  • PacketScan™ HD can send protocol fields, and call detail records, along with traffic summary of captured calls to a central database - NetsurveyorWEB™
  • PacketScan™ HD can work with GL's VoiceBand Analyzer (VBA) and Call Data Records (CDR) applications to generate Call Detail Records
  • Supports voice quality statistics such as MOS, R-Factor, packet loss, jitter and delay
High Density Bulk Call Traffic Generator (MAPS™ HD)
High Density Bulk Call Traffic Generator (MAPS™ HD)

MAPS™ HD is an advanced multi-protocol rack mounted Bulk Call Traffic Generator. Some of Its important features include:

  • Available as special purpose rack mount network appliance with 4x1GigE NIC capable of high call intensity (hundreds of calls/sec) and high volume of sustained calls (tens of thousands of simultaneous calls/platform)
  • Easily achieve up to 30,000 endpoints per appliance (8000 per port) and supports wide range of codecs
  • Up to 250 calls per second (with RTP traffic)
  • Scales to around 50,000 to 100,000 endpoints with use of Master Controller for single point of control
  • Powerful Load Generation, Scheduler, and Command Line Interface (CLI) for automation, remote control, and load testing
  • Simulate various traffic conditions to measure the performance and capability of an IP network element
  • Simulate complete protocol state machine to troubleshoot the network issues
  • QOS statistics: MOS/R-Factor, packet loss, jitter and delay are provided

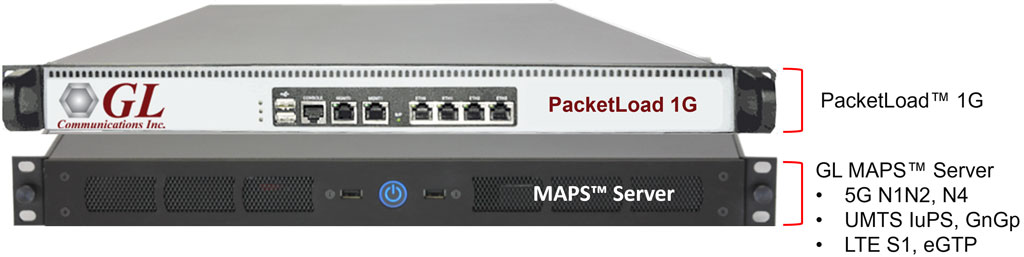

High Density Signaling & Packet Load Generator (2U)

PacketLoad is a 1U network appliance that includes 4 x 1GigE ports supporting total capacity of up to 4 Gbits/sec stateful packet traffic generation. Other features include:

  • GL's MAPS™ platform with PacketLoad appliance provides high density (up to 4 Gbps) stateful TCP/HTTP, UDP, and PCAP replay traffic simulation solution in UMTS (SGSN, GGSN, RNC), and LTE (SGW, PDNGW) networks
  • MAPS™ Server with PacketLoad module allows to encapsulate the generated packet data within GTP headers and transmit through the gateway points such as SGSN & GGSN, or SGW & PGW
  • PacketLoad module allows simultaneous simulation of multiple sessions per user to verify bearer allocation bandwidth at the end points
  • MAPS™ Server system controls PacketLoad appliance through CLI with HD parameter settings in Testbed setup
  • Statistics include Total packets transmitted and received, Latency, Delay, Bandwidth, Number of TCP connection created, Successful connection, Packet loss, etc

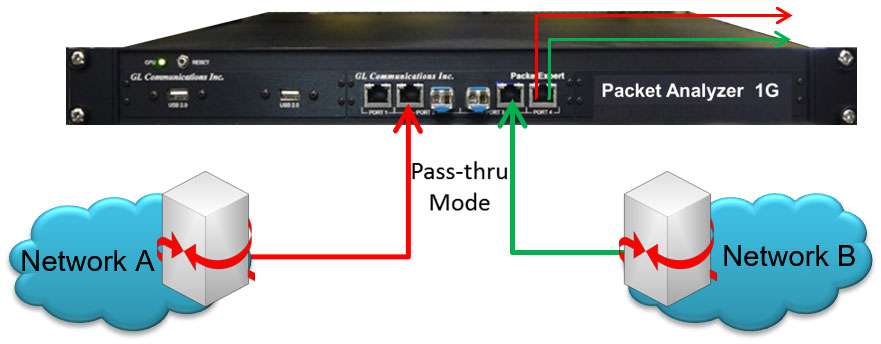

4 x 1 GigE Packet Analyzer (1U)

GL's PacketBroker that allows the Ethernet test tool to be used as a highly precise non-intrusive Wirespeed Ethernet Tap with all the necessary features that are listed below:

  • Capture real world packet-based traffic at wirespeed
  • Define multiple packet filters for drilling-down to traffic of interest
  • Generate triggers based on packet filters
  • Transmit filtered/ aggregated/ modified packets for deep-packet data analysis
  • Command Line Interface (CLI) for automation, and remote control

TDM/PSTN Test Solutions

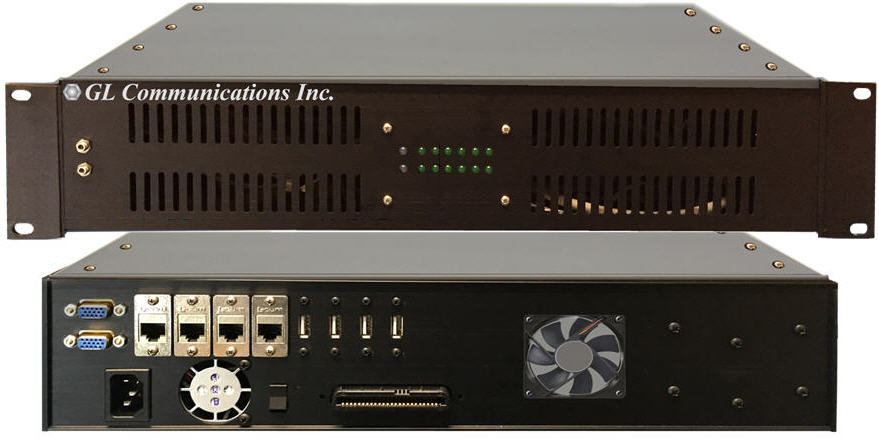

24 Port WB Analog Bulk Call Generator - VQuad™ System
24 Port WB Analog Bulk Call Generator - VQuad™ System

VQuad™ 24-port HD FXO solution is an all-in-one 2U rack supporting 24 independent HD FXO ports, with Wide Band (WB) and Narrow Band (NB) Audio.

The 2U VQuad™ HD FXO system incorporates 12 Dual UTA HD units supporting a total 24 FXO Analog ports, VQuad™ software, and all necessary PC interfaces.  Access to the 24 Analog ports is via an Amphenol connector on the back of the system which can be broken out to 24 RJ11 connections. All 24 FXO ports are independent and can be fully automated or remote controlled for a fully autonomous test solution.

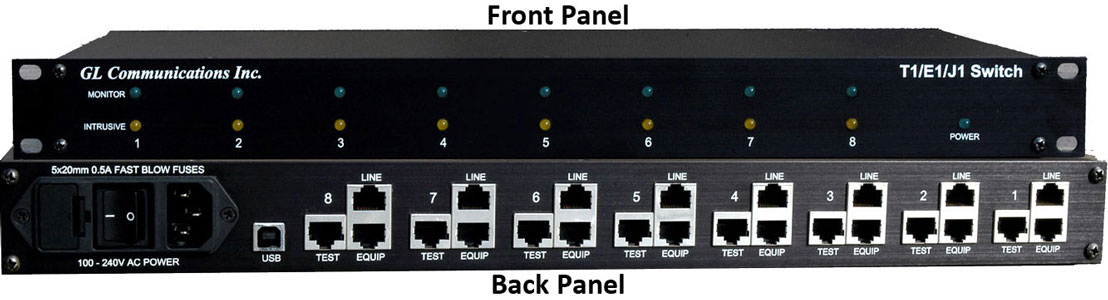

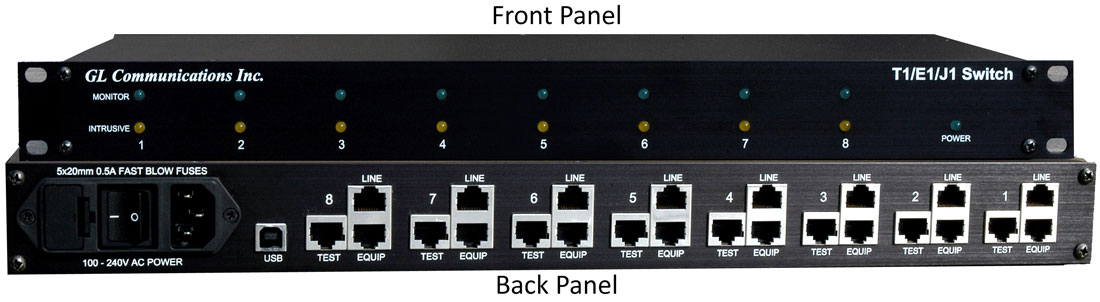

T1 E1 J1 Intrusive/Monitor Switch

The T1 E1 J1 Switch provides non-intrusive failsafe monitoring and intrusive test and diagnostic capability for up to 8 full duplex T1, E1, and J1 lines. The unit provides two RJ-48c connectors for a thru connection for equipment and line connections and a Rj-48c monitor connector for monitoring both directions of a full duplex high speed line. The switch can be remotely controlled via a USB connection. GUI and scripted control software is available for placing the switch in various modes for monitoring and diagnostic purposes.

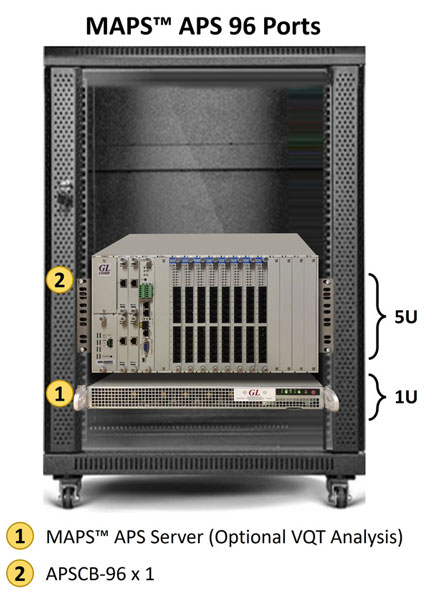

96-Port Analog Bulk Call Generator MAPS™ APS
96-Port Analog Bulk Call Generator MAPS™ APS

MAPS™ APS is the high capacity Analog 2-wire Bulk Call Generator used to test a Central Office (CO), PBX, ATAs, Gateway or other telecommunications equipment, which provide local loop interfaces. It includes a compact system comprising of MAPS™ APS, Analog Interfaces, Patch Panels and other optional modules (Fax Emulation and VQT Analysis) in a rackmount system.  MAPS™ APS system supports up to 96 independent FXO ports per 1U MAPS™ APS Server and APSCB-48. More can be achieved by simply scaling the system with a 4U MAPS™ APS Server sporting 2 Octal T1E1 Cards which can then support up to 384 analog ports.

Audio Analyzer

The Audio Analyzer is a 4-wire PTT device that can emulate all functions of a PTT device. It includes VQuad™ software, Dual UTA with PTT/Audio interfaces, and necessary PC interfaces. It can generate TTL signals based on different PTT actions (PTT ON, PTT OFF, Send Audio, Detect Audio). It can also be utilized in other areas of the network where analog audio signals are present.

Automatically key PTT signal as an endpoint and communicate with far end points such as Controller Working Position, Radio and VoIP Gateway

mTOP™ Solutions

Multiple TDM Optical and Packet (mTOP™) rack enclosure can house any combination of USB based test equipment- PacketExpert™ 10GX, tProbe™ (T1 E1), USB T3 E3, Dual UTAs, and LightSpeed1000™ to support multiple interfaces in a compact rack space. mTOP™ systems not only provides space efficiency, but also account for easier scalability and reduced licensing cost per port.

mTOP™ is a 1u rack mount enclosure, w/ or w/o Single Board Computer (SBC). Scalability of mTOP™ solution can be achieved by stacking mTOP™ enclosure housing any of the USB based units with daisy chain connection. The daisy chain option allows to connect multiple mTOP™ without SBC to a single mTOP™ with SBC, allowing all units to be controlled using a single software. This way multiple units can be stacked to accommodate more number of interfaces per system, and all controlled by a single software.

mTOP™ Solutions for TDM, Optical and Packet-IP network interfaces are briefly discussed.

mTOP™ VQuad™ Dual UTA HD

GL's VQuad™ mTOP™ solution is an all-in-one self-contained VQuad™ with Dual UTA HD test instrument designed for conveniently testing up to 12 independent telephony devices for Smartphone/Handset Benchmark Testing.

A single VQuad™ along with up-to 6 Dual UTA HD units [Two-stacked 1U mTOPs], supports connection to 12 independent telephony devices. It has the ability to generate Wireless as well as 2-Wire and 4-wire analog calls using same hardware. You can perform simultaneous Voice, Video, Data, Fax, and Time Delay Measurements from a single VQuad™ mTOP™ test solution - greatly reducing the licensing costs per device.

VQuad™ mTOP™ solution can be deployed in the lab to perform simultaneous Voice, Video, and Data Quality tests. For this solution we are using two mTOPs (mTOP™ 1 that includes an SBC connects to mTOP 2 via USB). So, essentially it is creating a system with one VQuad™ system and 6 Dual UTA HDs. All six Dual UTA HDs support FXO, 4-wire Analog, PTT, and Bluetooth interfaces to connect to any type of telephony device.

png VQuad™ mTOP™ Solution Brochure

  Hardware Specification

Two-stacked 1U mTOPs

Two-stacked 1U mTOPs
(Front Panel View)

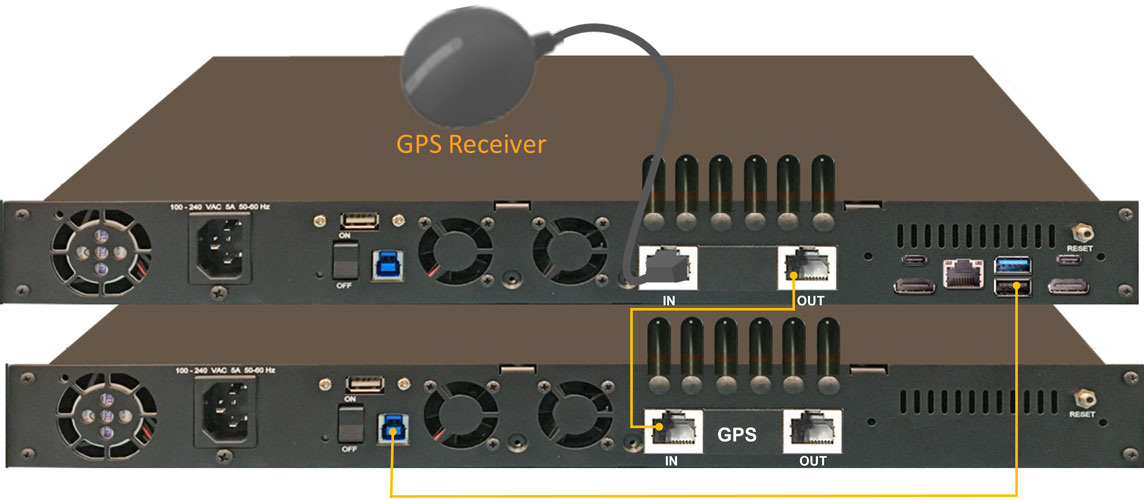

GPS connection on mTOP™ 1 daisy chains the GPS to multiple mTOP™ systems
GPS connection on mTOP™ 1 daisy chains
the GPS to multiple mTOP™ systems
(Back Panel View)




  • Height: Two-stacked 1U mTOPs [Total space—2U]
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ 1 System (embedded SBC, 3x DUAL UTA HD)
  • mTOP™ 2 System (3x DUAL UTA HD)
  • DUAL UTA HD interfaces (Side 1 & 2) –
    • 3.5mm In/Out Jacks (Balanced Audio)
    • RJ-11 Jacks (FXO)
    • RJ-22 Jacks (Handset/Handset Base)
    • 3.5mm Audio (Monitor)
    • Dual RJ-45 PTT Jacks
    • Dual RJ-45 GPS (In/Out) Jacks
    • Bluetooth® Antennas
  • SBC specifications –
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information -
    • MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7)
    • MT002
    • VQT251
    • DUAL UTA Options
    • VQuad™ Options

      Refer to VQT Price Lists

mTOP™ T1 E1, and T3E3 Testers

Almost all T1 E1 T3 E3 Testers can be accommodated into rack-based units. Multiple rack units can be stacked together for greater scalability. Shown below is a rack based tProbe™ T1 E1 / T3 E3 Analyzer unit, and a Channelized T3 E3 Analyzer unit supporting 6 T3s (6 * 672 DS0s). Such customized rack serves the purpose of handling multiple communications lines and test complex functionalities.

png T3T1 E3E1 Multi Interface mTOP™ Rackmount Brochure

  Hardware Specifications

2U Rack with T3 E3 and T1 E1 Test Tools

2U Rack with T3 E3 and T1 E1 Test Tools
(Front Panel View)

6x T3 E3 Channelized Analyzer
6x T3 E3 Channelized Analyzer
(Front Panel View)
  • Height: 2U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 1x USB T3 E3, 1x T1 E1 tProbe)
  • USB T3 E3 interfaces -
    • DS3/E3 75O BNC (Tx, Rx) Ports
    • DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert
    • MCX External Clock Ports
    • USB 3.0 and 2.0 Connected to a USB Ports
    • Internally powered by Power Supply
    • 1000 Mbps Ethernet Port
  • USB tProbe T1 E1 interfaces -
    • (1) RJ-45 10/100 Ethernet Connector
    • (2) RJ-48c T1 E1 Connectors
    • (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Connectors (TX & RX)
    • (1) MCX Coaxial External Clock Connector
    • (1) Coaxial DC Power Connector (mates with 5.5mm x 2.1mm coaxial plug)
  • SBC specifications -
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display

mTOP™ 1G Multi-Port Ethernet Rackmount

High Density PacketExpert™ of 12/24 GigE ports form factor solution are used for testing multi-port switches, routers and networks end-to-end. Each of the 12/24 GigE port supports auto‐negotiation and flow control. The chassis comprises of both electrical and optical (fiber) interfaces. The Electrical ports can operate up to 10/100/1000 Mbps line rates in Full Duplex mode, while Optical ports can operate up to 1000 Mbps line rate in Full Duplex mode. A single PacketExpert™ mTOP™ test solution with stacked rack units greatly reduces the licensing costs per device.

png PacketExpert Multi-Port Ethernet IP Tester Brochure

  Hardware Specifications

PacketExpert™ 1G mTOP™ 1U rack solution
PacketExpert™ 1G mTOP™ 1U rack solution
(Front Panel View)



Stacked 1U PacketExpert™ 1G mTOP™ Solution
Stacked 1U PacketExpert™ 1G mTOP™ Solution
(Front Panel View)




  • Height: 1U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 3x PacketExpert 1G)
  • Height: 2U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 6x PacketExpert 1G)
  • PacketExpert 1G interfaces (1 unit) -
    • 4 Total Ethernet ports
    • 2 10/100/1000 Base-T Electrical only
    • 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical
    • Single Mode or Multi Mode Fiber SFP support with LC connector
  • SBC specifications -
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display

mTOP™ 10G/1G Multi-Port Ethernet Rackmount

The sleek design of PacketExpert™ 10GX (PXN100) portable hardware allows multiple such units to be easily placed in a mTOP™ 1U/2U rack mount enclosure (MT001/MT001E, MT002) to provide high density GigE ports form factor solution (MT001/MT001E + PXN100) for testing GigE switches, routers and network conditions. It is perfect ethernet test tool for customers who require multi-port testing but are constrained by lab space.  It is a compact with reduced power requirements appliance for high performance and optionally can include 12-port user-configurable TTL trigger ports as an important enhancement. A single PacketExpert™ mTOP™ test solution (MT001/MT001E + PXN100) with stacked rack units greatly reduces the licensing costs per device.


png PacketExpert 10GX (PXN100) Ethernet IP Tester Brochure

  Hardware Specifications
mTOP™ PXN100 1U System
1U mTOP™ with 3x PXN100 USB units
1U mTOP™ with 3x PXN100 USB units
(MT001/MT001E + PXN100)
  • Height: 1U mTOP™
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 3x PXN100)
  • PacketExpert™ 10GX (PXN100) interfaces -
  • 6 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical
  • 6 x 10G Base-SR, -LR -ER Optical only
  • SBC specifications -
  • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
  • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
  • 256GB Hard drive, 8G Memory (Min)
  • Two HDMI ports for display
  • Order information -
  • MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7)
  • PXN100

Refer to IP-Ethernet-Testers-PacketExpert-Platforms

1U mTOP™ with single PXN100 USB unit

1U mTOP™ with single PXN100 USB unit
(MT001/MT001E + PXN100)

  • Height: 1U mTOP™
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, single PXN100)
  • 3x 4-Port SMA Jack Trigger Board (TTL Input/Output) - Optional
  • PacketExpert™ 10GX (PXN100) interfaces -
  • 2 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical
  • 2 x 10G Base-SR, -LR -ER Optical only
  • SBC specifications -
  • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
  • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
  • 256GB Hard drive, 8G Memory (Min)
  • Two HDMI ports for display
  • Order information -
  • MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7)
  • PXN100

Refer to IP-Ethernet-Testers-PacketExpert-Platforms

mTOP™ PXN100 1U Stacked System
Two-stacked 1U mTOP™ with 6x PXN100 USB units
Two-stacked 1U mTOP™ with 6x PXN100 USB units
(MT001/MT001E + MT002 + PXN100) - Front Panel View

Two-stacked 1U mTOP™ with SBC connected
Two-stacked 1U mTOP™ with SBC connected
to w/o SBC rack

(MT001/MT001E + MT002) - Back Panel View
  • Height: 2x 1U mTOP™
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ 1 System (embedded SBC, 3x PXN100)
  • mTOP™ 2 System (w/o SBC, 3x PXN100)
  • PacketExpert™ 10GX (PXN100) interfaces -
  • 12 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical
  • 12 x 10G Base-SR, -LR -ER Optical only
  • SBC specifications -
  • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
  • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
  • 256GB Hard drive, 8G Memory (Min)
  • Two HDMI ports for display
  • Order information -
  • MT001/MT001E + MT002
  • PXN100

Refer to IP-Ethernet-Testers-PacketExpert-Platforms

mTOP™ Ethernet-Optical-TDM Testers

mTOP™ can combine any of the testers discussed above for unified testing experience of Ethernet /IP, TDM and Optical technologies. It can perform as an all-in-one performance analysis tool allowing tests to be performed at any end points.

Ethernet /IP Testing Tool can be used as a general-purpose Ethernet to IP performance analysis tool for 10 Mbps, 100 Mbps and 1 Gbps Ethernet local area networks and wide area networks (WAN). Each GigE port provides independent Ethernet/VLAN/MPLS/IP/UDP testing at wire speed.

LightSpeed1000™ hardware platform is capable of OC-3/12 and STM-1/4 wire-speed processing on quad optical ports for functions such as wire-speed recording and wire-speed playback of Unchannelized and Channelized ATM, PoS, and RAW Traffic.

T3 E3 Analyzer is capable of processing signaling, voice, and data full T3 (DS3) or E3 data streams, dropping and inserting T1 (DS1) or E1, and analysis of HDLC, ATM, Frame Relay, and PPP Protocols. It includes various signal testing capabilities for Unchannelized (Unstructured) and Channelized (Structured) T3 E3 Traffic.

Dual UTA HD hardware unit, which supports all the interfaces and telephony devices in a smaller (compact) design. Dual UTA HD supports testing HD voice using Bluetooth® Wideband, and FXO Wideband along with hardware loopback controlled through the VQuad™. Dual UTA HD hardware also includes a PTT interface, Self-Test LED, GPS connect LED, and other enhanced features.

  Hardware Specifications

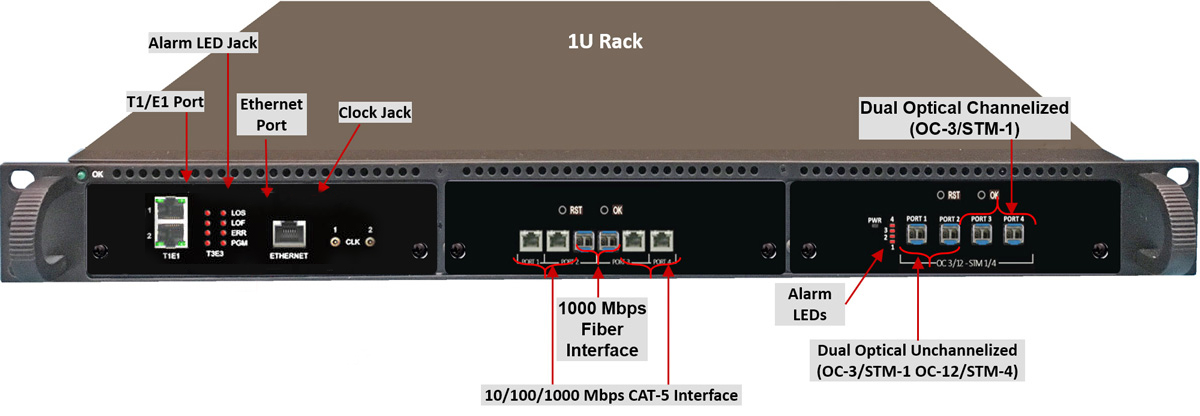

1U mTOP™ with USB T3 E3, PacketExpert™ 1G and LTS1000

1U mTOP™ with USB T3 E3, PacketExpert1G
and LTS1000

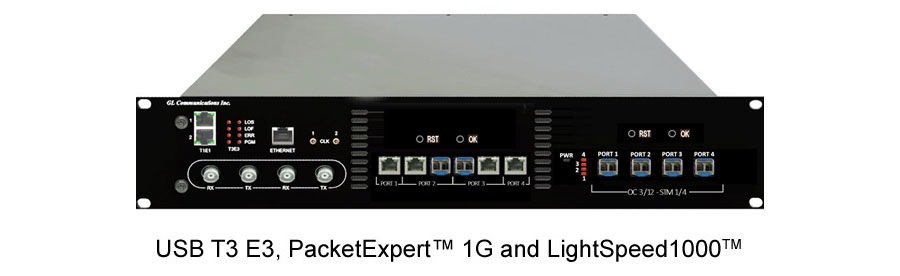

2U Rack with USB T3 E3, PacketExpert™ 1G and LTS1000

2U Rack with USB T3 E3, PacketExpert1G
and LTS1000


1U mTOP™ with tProbe, PacketExpert 1G and Dual UTA
1U mTOP™ with tProbe, PacketExpert 1G
and Dual UTA


T3E3, Datacom, & PacketExpert™ 1G - mTOP™ Solutions
T3E3, Datacom, & PacketExpert™ 1G
-
mTOP™ Solutions

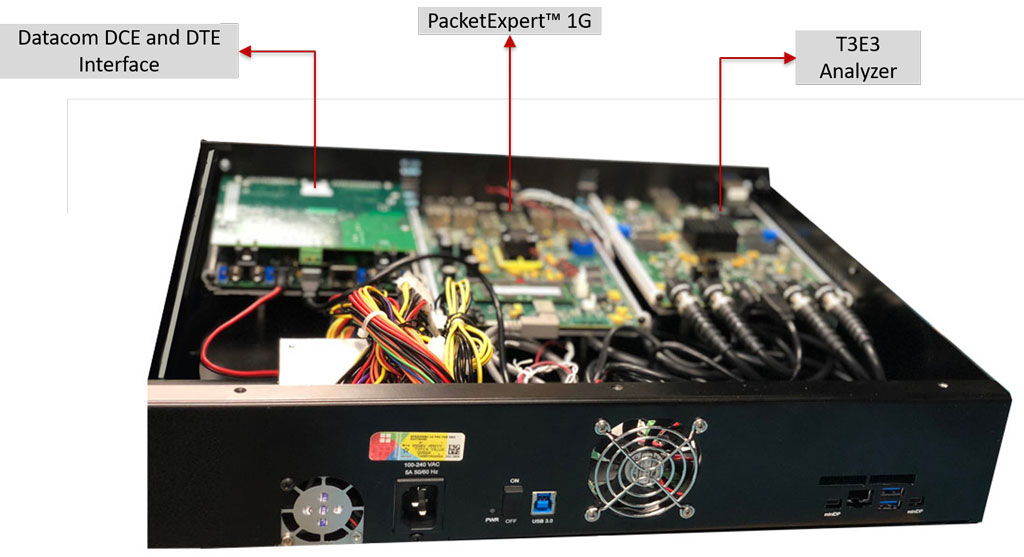

Top view of mTop™ solution connected with Datacom, PacketExpert™ 1G, and T3E3 Analyzer
Top view of mTop™ solution connected with Datacom, PacketExpert™ 1G, and T3E3 Analyzer
  • mTOP™ 1U System (embedded SBC w/ USB T1 E1, PacketExpert 1G, Dual UTA HD)
    • Height: 1U Rack
    • Length: 16 Inches
    • Width: 19 Inches
  • 2U Rack System (embedded SBC w/ USB T3 E3, PacketExpert 1G, LightSpeed1000)
    • Height: 2U Rack
    • Length: 16 Inches
    • Width: 19 Inches
  • DUAL UTA HD interfaces (Side 1 & 2) -
    • 3.5mm In/Out Jacks (Balanced Audio)
    • RJ-11 Jacks (FXO)
    • RJ-22 Jacks (Handset/Handset Base)
    • 3.5mm Audio (Monitor)
    • Dual RJ-45 PTT Jacks
    • Bluetooth® Antennas
    • Serial COM & Display VGA (Video Graphics Array) Ports

      Refer to VQT Price Lists
  • USB T3 E3 interfaces -
    • DS3/E3 75O BNC (Tx, Rx) Ports
    • DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert
    • MCX External Clock Ports
    • USB 2.0 and 3.0 Connected to a USB Ports
    • Internally powered by Power Supply
    • 1000 Mbps Ethernet Port
  • USB tProbe T1 E1 interfaces -
    • (1) RJ-45 10/100 Ethernet Connector
    • (2) RJ-48c T1 E1 Connectors
    • (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Connectors (TX & RX)
    • (1) MCX Coaxial External Clock Connector
    • (1) Coaxial DC Power Connector (mates with 5.5mm x 2.1mm coaxial plug)

      Refer to T1 E1 Price List and T3 E3 Price List
  • Datacom Interface
    • Dual DB25 Connectors Support:
      • DTE/DCE
      • RS-232/V.28
      • X.21/V.11
      • RS-449/V.36 /V.10/V.11
      • EIA-530/V.10/V.11
      • EIA-530A/V.10/V.11
      • V.35/V.28.
  • LightSpeed1000™ interfaces -
    • High Performance x4 PCIe Compliance with optimized DMA to perform Rx and Tx packets to/from PC memory
    • 4 Optical Ports -
      2 Unchannelized Ports (STM-1/OC-3 and STM-4/OC-12)
      2 Channelized Ports (STM-1/OC-3)
  • PacketExpert™ 1G interfaces (1 unit) -
    • 4 Total Ethernet ports
    • 2 10/100/1000 Base-T Electrical only
    • 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical
    • Single Mode or Multi Mode Fiber SFP support with LC connector

      Refer to Packet /Ethernet Series Price Lists
  • SBC specifications -
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information
    • MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7)
    • VQT251
    • TE3001
    • PTE001
    • PXE104

mTOP™ T1 E1 Datacom FXO FXS Tester

mTOP™ T1 E1 Datacom FXO FXS rack enclosure is a sleek 1U appliance housing GL’s USB based tProbe with T1 E1 interfaces, FXO FXS card and Datacom card hardware units for unified testing experience of TDM and Analog technologies.

mTOP™ Datacom tester monitors the T1 E1 line conditions such as frame errors, violations, alarms, frequency, power level, and clock (or frame/bit) slips. Supports interface standards such as X.21, V.24, V.35, RS-449, RS-485, EIA-530 and EIA-530A. Various cables are provided for these interfaces to make testing convenient.

The FXO port on the mTOP™ Tester rack unit permits non-intrusive capture and analysis of voice-band signals from a two-wire telephone line. The FXS port emulates a two-wire FXS service such as a telephone wall jack. The T1 E1 board on the rack monitors the T1 E1 line conditions such as frame errors, violations, alarms, frequency, power level, and clock (or frame/bit) slips. Comprehensive Analysis / Emulation of Voice, Data, Fax, Protocol, Analog, and Digital signals, including Echo and Voice Quality testing.

Multiple rack units can be stacked together for greater scalability. Shown below is a rack based T1 E1 Datacom FXO FXS Emulator and Analyzer unit. Such customized rack serves the purpose of handling multiple communications lines and test complex functionalities.

  Hardware Specifications (for 1 unit)

mTOP™ T1 E1 Datacom FXO FXS Tester
mTOP™ T1 E1 Datacom FXO FXS Tester


  • Height: 1U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 1x USB T1 E1 Datacom, 1x USB FXO FXS units)
  • USB tProbe Datacom T1 E1 interfaces -
    • (2) RJ-48c T1 E1 Connectors
    • (1) MCX Coaxial External Clock Connector
    • (1) RJ-45 10/100 Ethernet Jack
  • Datacom Interface
    • Dual DB25 Connectors Support:
      • DTE/DCE
      • RS-232/V.28
      • X.21/V.11
      • RS-449/V.36 /V.10/V.11
      • EIA-530/V.10/V.11
      • EIA-530A/V.10/V.11
      • V.35/V.28
  • FXO FXS interfaces -
    • (2) RJ-11 2-wire FXO FXS ports
    • (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Jacks (TX & RX)
  • SBC specifications -
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information
    • MT001 and MT002
    • PTE001 + PTE025 + PTE015
    • SA000C
    • T1 E1 Analyzer Options

      Refer to T1 E1 Price List



mTOP™ T1 E1 T3 E3 Datacom Tester

mTOP™ T1 E1 T3 E3 w/Datacom rack enclosure is designed for the test and verification of data communications equipment and circuits - specifically serial interfaces that provide clock, data, and control signals. Software selectable modes are provided to emulate DTE, DCE and non-intrusive monitoring for both synchronous (sync), and asynchronous (async) modes.

mTOP™ Datacom tester monitors the T1 E1 line conditions such as frame errors, violations, alarms, frequency, power level, and clock (or frame/bit) slips. Supports interface standards such as X.21, V.24, V.35, RS-449, RS-485, EIA-530 and EIA-530A. Various cables are provided for these interfaces to make testing convenient.

The FXO port on the mTOP™ rack unit is used to simulate a two-wire FXO device such as a telephone or a fax machine and the FXS port allows to emulate a 2-wire FXS service such as a telephone wall jack. Multiple rack units can be stacked together for greater scalability. Shown below is a rack based T1 E1 Datacom Emulator and Analyzer unit. Such customized rack serves the purpose of handling multiple communications lines and test complex functionalities.

  Hardware Specifications
T3E3, Datacom, & PacketExpert™ 1G - mTOP™ Solutions
T3E3, T1 E1 Datacom, & PacketExpert™ 1G
-
mTOP™ Solutions



  • Height: 2U Rack
  • Length: 16 Inches
  • Width: 19 Inches
  • mTOP™ System (embedded SBC, 1x USB T1 E1 Datacom, 1x USB T3 E3 units, 1x PacketExpert 1G)
  • USB tProbe T1 E1 interfaces -
    • (2) RJ-48c T1 E1 Connectors
    • (1) MCX Coaxial External Clock Connector
    • (1) RJ-45 10/100 Ethernet Jack
  • T1 E1 Datacom Interface
    • Dual DB25 Connectors Support:
      • DTE/DCE
      • RS-232/V.28
      • X.21/V.11
      • RS-449/V.36 /V.10/V.11
      • EIA-530/V.10/V.11
      • EIA-530A/V.10/V.11
      • V.35/V.28
  • T3 E3 interfaces -
    • DS3/E3 75O BNC (Tx, Rx) Ports
    • DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert
    • MCX External Clock Ports
    • USB 3.0 and above connected to a USB Ports
    • Internally powered by Power Supply
    • 1000 Mbps Ethernet Port
  • PacketExpert™ 1G interfaces (1 unit) -
    • 4 Total Ethernet ports
    • 2 10/100/1000 Base-T Electrical only
    • 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical
    • Single Mode or Multi Mode Fiber SFP support with LC connector

      Refer to Packet /Ethernet Series Price Lists
  • SBC specifications -
    • Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System
    • USB 3.0 and 2.0 Ports, (2) USB Type C ports, (1) 2.5GigE Ethernet port, ATX Power Supply
    • 256GB Hard drive, 8G Memory (Min)
    • Two HDMI ports for display
  • Order information
    • PTE025 + PTE001
    • PXE100
    • TE3001

Refer to Datacom Price List

Optical Tap Repeaters (OTR)

Multiport Optical Tap Repeater hardware test platform provides multiple identical outputs for optical and electrical signals at OC-3 / STM-1, OC-12 / STM-4, OC-48 / STM-16, 1 GigE, and 2.5 GigE rates. The need for optical taps that cut the optical power by 30% or 50% are not needed, since the signals are repeated at full power.

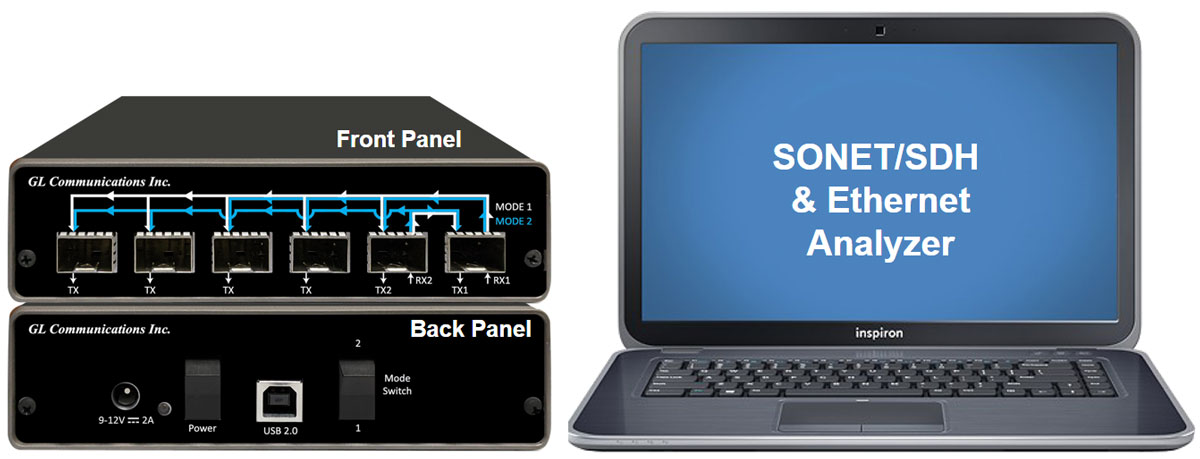

Portable Multiport Optical Tap Repeater

Portable Multiport Optical Tap Repeater

1U mTOP™ Multiport Optical Repeater

1U mTOP™ Multiport Optical Repeater

Resources

Item No. Description
MT001 mTOP™ 1U Rack Mount Enclosure w/SBC (intel core i3)
MT001E mTOP™ Rack Mount Enclosure w/SBC (intel core i7)
MT002 mTOP™ 1U Rack Mount Enclosure w/o SBC
MT005 mTOP™ Probe (Portable Stand-alone)(intel core i3)
MT005E mTOP™ Probe (Portable Stand-alone) (intel core i7)
PXN100 PacketExpert™ 10GX
PXE100 PacketExpert™ 1G
VQT251 Dual UTA HD Next generation Dual UTA with FXO Wideband support
LTS105 Lightspeed1000™ - Portable OC3/12 STM1/4 USB Unit (Legacy)
VQT010 VQuad™ Software (Stand Alone)
VQT252 Dual UTA HD - Bluetooth Option
PTE001 tProbe™ T1 E1 Base Unit
PTA001 tProbe™ Basic E1 Software (includes xx600, xx605)
PTE015 w/ 2Wire FXO and FXS Optional Board
