Rackmount, Portable & mTOP™ Platforms

Rackmount Platforms

Lunchbox / Semi- Portable Platforms

Lunchbox PC

Portable Platforms

Notebook PC with Portable Analyzers

mTop™ Platforms

mTop™ Rackmount
mTop™ Probe

1U, Industrial Rackmount PC

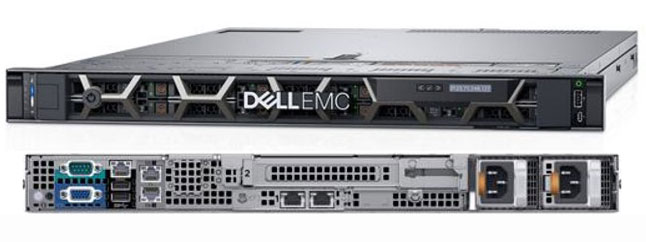

Dell PowerEdge R440

Key Features

Processors:	Up to two 2nd Generation Intel® Xeon® Scalable processors
Storage	At least 480GB SSD
Memory	16GB DDR4 up to 2666 MT/s
Ports	Front Ports 1x USB 2.0 1x VGA Rear Ports 1x Serial 2x USB3.0 1x VGA
Network	2 x 1GbE
Slots	2x Gen3 slots (x16, 1 full height)
Power Supply	Dual, Hot Plug, Redundant Power Supply, 550W
OS	Windows Server 2019
Dimensions	H 42.8mm (1.68”) W 434mm (17.08”) D 714.6mm (28.13”)
Weight	17.6kg (38.9 lbs)
Accessories	Slide rails (included)
Warranty	1 year limited warranty

2U, Industrial Rackmount PC

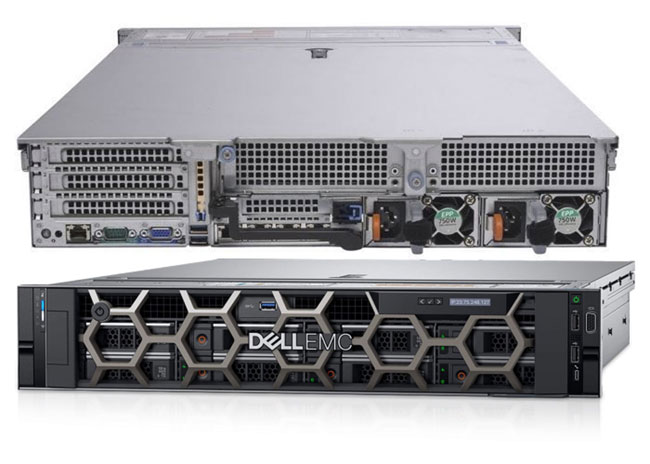

Dell PowerEdge R740

Key Features

Processors:	Up to two 2nd Generation Intel® Xeon® Scalable processors
Storage	At least 480GB SSD
Memory	16GB DDR4 up to 2666 MT/s
Ports	Front Ports 2x USB 2.0 1x VGA Rear Ports 1x Serial 2x USB3.0 1x VGA
Network	4 x 1GbE
Slots	up to 8 x Gen3 slots (4 x16)
Power Supply	Dual, Hot Plug, Redundant Power Supply, 750W
OS	Windows Server 2019
Dimensions	H 86.8mm (3.4") W 434.0mm (17.1") D 737.5mm (29.0")
Weight	28.6kg (63.0lbs.)
Accessories	Slide rails (included)
Warranty	1 year limited warranty

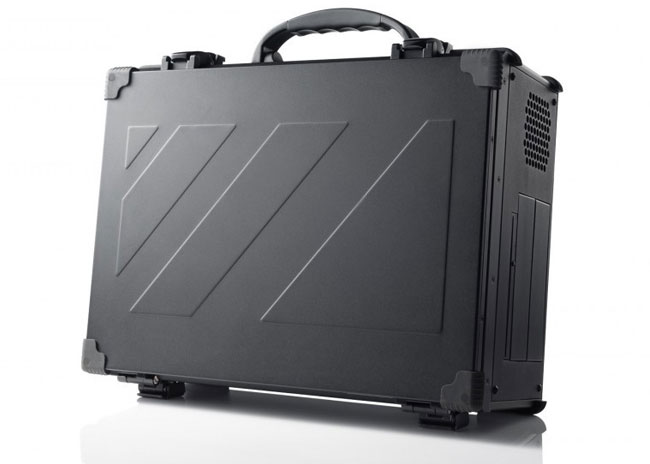

Lunchbox PC

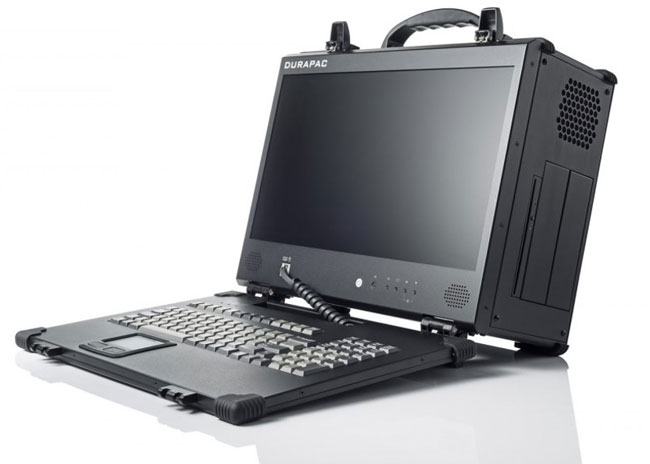

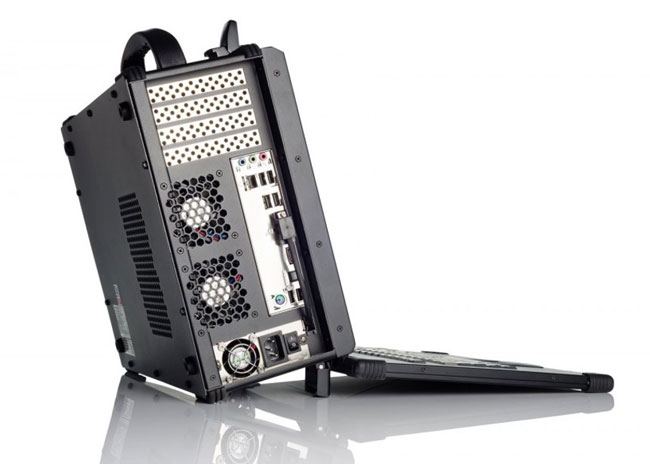

ACME Portable DuraPAC

Key Features

Display	17.3” Full HD 1920x1080
Processors:	Latest Intel® Xeon, Intel® Core, or AMD Ryzen™ 7
Storage	At least 500GB SSD
Memory	16GB DDR4
Network	1GbE
Slots	up to 4x Gen3 slots
Power Supply	680W 100/240VAC, 50/60Hz Auto-Switching 80 Plus Gold Rated
OS	Windows 10 Pro 64-bit
Dimensions	H 13.62" W 16.50" D 7.25"
Weight	~23 lbs
Warranty	1 year limited warranty

Notebook PC with Portable Analyzers

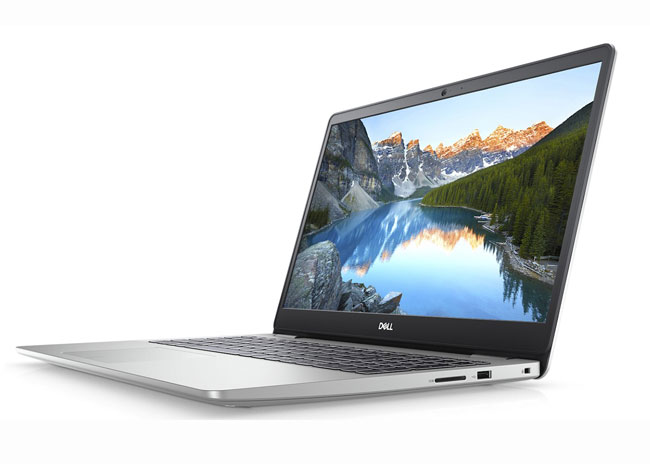

Notebook Specification

15.6" (1920x1080) LED-Backlit Display
Latest generation Intel Core i7 processor
16 GB DDR4 Memory
512 GB NVMe SSD
Gigabit Ethernet
HDMI
Windows 10 Pro 64-bit
2x USB 3.1 ports
1x USB 2.0 port
WLAN : Bluetooth, 802.11ac
Bluetooth 4.1
4.03 lbs
One year manufacturer warranty

mTop Rackmount

mTOP™ VQuad™ Dual UTA HD

	Hardware Specification

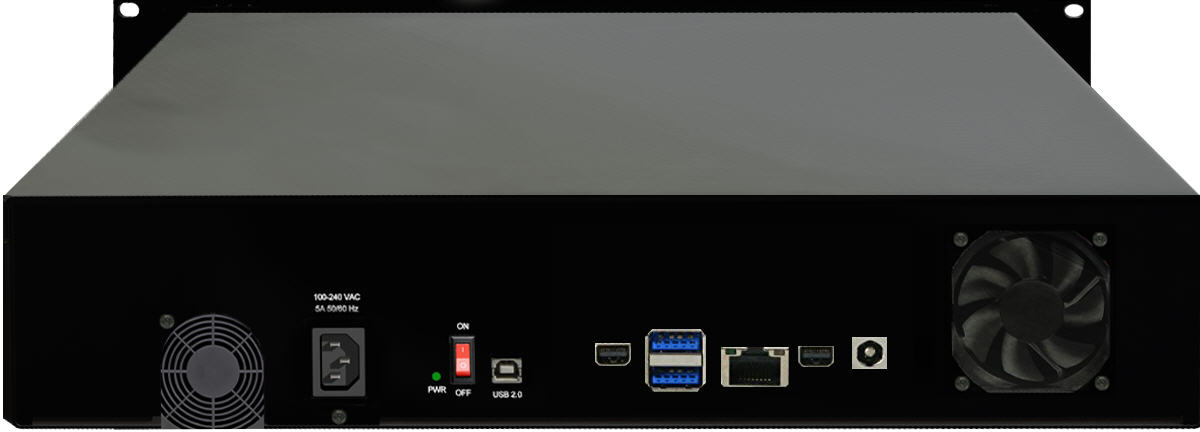

Two-stacked 1U mTOP™ (Front Panel View) GPS connection on mTOP™ 1 daisy chains the GPS to multiple mTOP™ systems (Back Panel View)	Height: Two-stacked 1U mTOP™ [Total space—2U] Length: 16 Inches Width: 19 Inches mTOP™ 1 System (embedded SBC, 3x DUAL UTA HD) mTOP™ 2 System (3x DUAL UTA HD) DUAL UTA HD interfaces (Side 1 & 2) – 3.5mm In/Out Jacks (Balanced Audio) RJ-11 Jacks (FXO) RJ-22 Jacks (Handset/Handset Base) 3.5mm Audio (Monitor) Dual RJ-45 PTT Jacks Dual RJ-45 GPS (In/Out) Jacks Bluetooth® Antennas SBC specifications – Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports for disply Order information - MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7) MT002 VQT251 DUAL UTA Options VQuad™ Options Refer to VQT Price Lists

mTOP™ T1 E1, and T3E3 Testers

	Hardware Specifications
2U Rack with T3 E3 and T1 E1 Test Tools (Front Panel View) 6x T3 E3 Channelized Analyzer (Front Panel View)	Height: 2U Rack Length: 16 Inches Width: 19 Inches 2U Rack System (embedded SBC, USB T3 E3, T1 E1 tProbe™) USB T3 E3 interfaces - DS3/E3 75O BNC (Tx, Rx) Ports DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert MCX External Clock Ports USB 3.0 and 2.0 Ports Internally powered by Power Supply 1000 Mbps Ethernet Port USB tProbe™ T1 E1 interfaces - (1) RJ-45 10/100 Ethernet Connector (2) RJ-48c T1/E1 Connectors (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Connectors (TX & RX) (1) MCX Coaxial External Clock Connector (1) Coaxial DC Power Connector (mates with 5.5mm x 2.1mm coaxial plug) SBC specifications - Intel Core i3 or optional i7 Equivalent, Windows® 11 64-bit Pro Operating System USB 0.3 and 0.2 Ports, ATX Power Supply Ethernet 2.5GigE port 256GB Hard drive, 8G Memory (Min) Two HDMI ports Order information TE3001 PTE001 SA000C T3 E3 Analyzer Options T1 E1 Analyzer Options Refer to T1 E1 Price List and T3 E3 Price List

mTOP™ 1G Multi-Port Ethernet Rackmount

	Hardware Specifications
PacketExpert™ 1G mTOP™ 1U rack solution (Front Panel View) Stacked 1U PacketExpert™ 1G mTOP™ Solution (Front Panel View)	Height: 1U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, 3x PacketExpert 1G) Height: 2U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, 6x PacketExpert 1G) PacketExpert 1G interfaces (1 unit) - 4 Total Ethernet ports 2 10/100/1000 Base-T Electrical only 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical Single Mode or Multi Mode Fiber SFP support with LC connector SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7) PXE100 PXE104 PXE112 PXE124 PacketExpert Options Refer to Packet /Ethernet Series Price Lists

mTOP™ 10G/1G Multi-Port Ethernet Rackmount

	Hardware Specifications
mTOP™ PXN100 1U System 1U mTOP™ with 3x PXN100 USB units (MT001/MT001E + PXN100)	Height: 1U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, 3x PXN100) PacketExpert™ 10GX (PXN100) interfaces - 6 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical 6 x 10G Base-SR, -LR -ER Optical only SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Hub, ATX Power Supply USB Type C ports, Ethernet 2.5GigE port 256GB Hard drive, 8G Memory Two HDMI ports Order information - MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7) PXN100 Refer to IP-Ethernet-Testers-PacketExpert-Platforms
1U mTOP™ with single PXN100 USB unit (MT001/MT001E + PXN100)	Height: 1U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, single PXN100) 3x 4-Port SMA Jack Trigger Board (TTL Input/Output) - Optional PacketExpert™ 10GX (PXN100) interfaces - 2 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical 2 x 10G Base-SR, -LR -ER Optical only SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information - MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7) PXN100 Refer to IP-Ethernet-Testers-PacketExpert-Platforms
mTOP™ PXN100 1U Stacked System Two-stacked 1U mTOP™ Rack with 6x PXN100 USB units (MT001/MT001E + MT002 + PXN100) - Front Panel View Two-stacked 1U mTOP™ with SBC connected to w/o SBC rack (MT001/MT001E + MT002) - Back Panel View	Height: 2x 1U Rack Length: 16 Inches Width: 19 Inches mTOP™ 1 System (embedded SBC, 3x PXN100) mTOP™ 2 System (w/o SBC, 3x PXN100) PacketExpert™ 10GX (PXN100) interfaces - 12 x 1G Base-X Optical OR 10/100/1000 Base-T Electrical 12 x 10G Base-SR, -LR -ER Optical only SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information - MT001/MT001E + MT002 PXN100 Refer to IP-Ethernet-Testers-PacketExpert-Platforms

mTOP™ Ethernet-Optical-TDM Testers

	Hardware Specifications
1U mTOP™ with USB T3 E3, PacketExpert™ 1G and LTS1000 2U Rack; with USB T3 E3, PacketExpert™ 1G and LTS1000 1U Rack with tProbe™, PacketExpert™ 1G and Dual UTA T3E3, Datacom, & PacketExpert™ 1G - mTOP™ Solutions Top view of mTOP™ solution connected with Datacom, PacketExpert™ 1G, and T3E3 Analyzer	mTOP™ 2U System (embedded SBC w/ USB T3 E3, PacketExpert 1G, LightSpeed1000) Height: 2U mTOP™ Length: 16 Inches Width: 19 Inches mTOP™ 1U System (embedded SBC w/ USB T1 E1, PacketExpert 1G, Dual UTA HD) Height: 1U Rack Length: 16 Inches Width: 19 Inches DUAL UTA HD interfaces (Side 1 & 2) - 3.5mm In/Out Jacks (Balanced Audio) RJ-11 Jacks (FXO) RJ-22 Jacks (Handset/Handset Base) 3.5mm Audio (Monitor) Dual RJ-45 PTT Jacks Bluetooth® Antennas Serial COM & Display VGA (Video Graphics Array) Ports Refer to VQT Price Lists USB T3 E3 interfaces - DS3/E3 75O BNC (Tx, Rx) Ports DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert MCX External Clock Ports USB 3.0 and 2.0 Ports Internally powered by Power Supply 1000 Mbps Ethernet Port USB tProbe™ T1 E1 interfaces - (1) RJ-45 10/100 Ethernet Connector (2) RJ-48c T1/E1 Connectors (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Connectors (TX & RX) (1) MCX Coaxial External Clock Connector (1) Coaxial DC Power Connector (mates with 5.5mm x 2.1mm coaxial plug) Refer to T1 E1 Price List and T3 E3 Price List Datacom Interface Dual DB25 Connectors Support: DTE/DCE RS-232/V.28 X.21/V.11 RS-449/V.36 /V.10/V.11 EIA-530/V.10/V.11 EIA-530A/V.10/V.11 V.35/V.28. LightSpeed1000™ interfaces - High Performance x4 PCIe Compliance with optimized DMA to perform Rx and Tx packets to/from PC memory. 4 Optical Ports - 2 Unchannelized Ports (STM-1/OC-3 and STM-4/OC-12) 2 Channelized Ports (STM-1/OC-3) USB 3.0 and 2.0 Ports LOS, LOF, User-defined LEDs Refer to OC-3/STM-1 and OC-12/STM-4 Analysis Price List PacketExpert™ 1G interfaces (1 unit) - 4 Total Ethernet ports 2 10/100/1000 Base-T Electrical only 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical Single Mode or Multi Mode Fiber SFP support with LC connector Refer to Packet /Ethernet Series Price Lists SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information MT001/MT001E - 1U mTOP™ rack with SBC (Intel Core i7) VQT251 TE3001 PTE001 PXE104

mTOP™ T1 E1 FXO FXS Tester

	Hardware Specifications

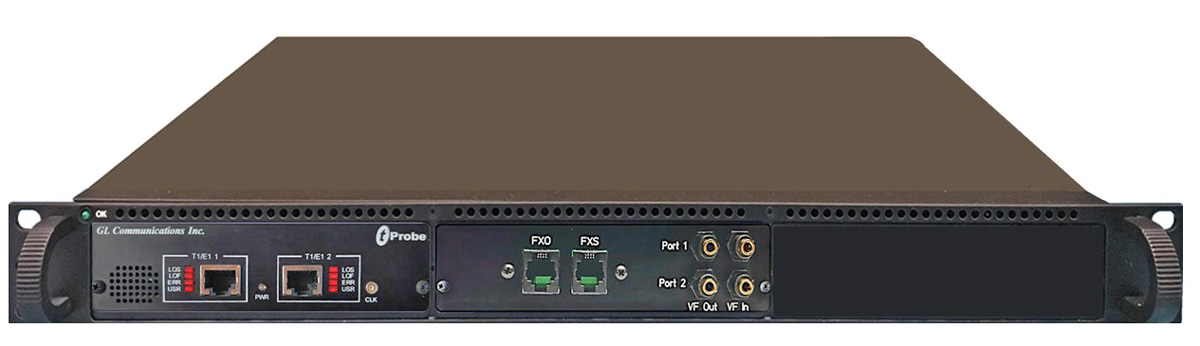

mTOP™ T1 E1 FXO FXS Tester	Height: 1U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, 1x USB T1 E1, 1x USB FXO FXS units) USB tProbe™ T1 E1 interfaces - (2) RJ-48c T1/E1 Connectors (1) MCX Coaxial External Clock Connector Power LED USB FXO FXS interfaces - (2) RJ-11 2-wire FXO FXS ports (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Jacks (TX & RX) SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information PTE001 SA000C T1 E1 Analyzer Options Refer to T1 E1 Price List

mTOP™ T1 E1 Datacom Tester

	Hardware Specifications

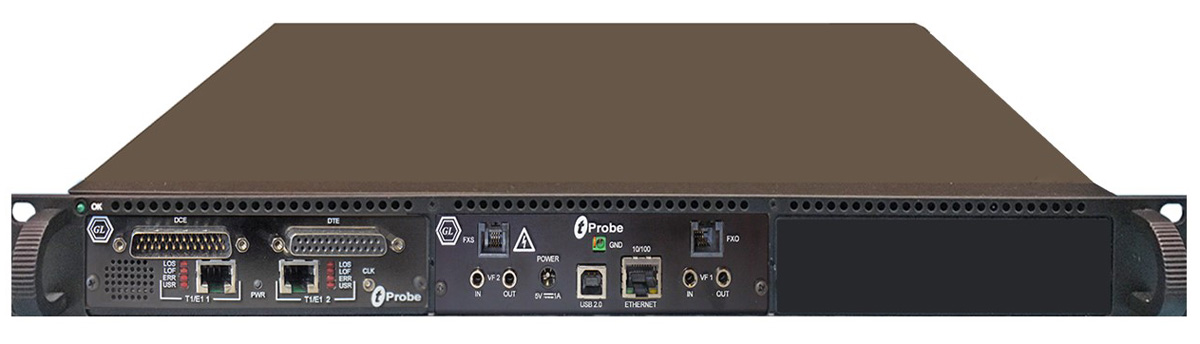

mTOP™ tProbe™ T1 E1 w/Datacom Tester - 1U Rack Solution T3E3, Datacom, & PacketExpert™ 1G - 2U Rack Solution	Height: 2U Rack Length: 16 Inches Width: 19 Inches mTOP™ System (embedded SBC, 1x USB T1 E1 Datacom, 1x USB FXO FXS units) USB tProbe™ Datacom T1 E1 interfaces - (2) RJ-48c T1/E1 Connectors (1) MCX Coaxial External Clock Connector (1) RJ-45 10/100 Ethernet Jack USB FXO FXS interfaces - (2) RJ-11 2-wire FXO FXS ports (4) 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Jacks (TX & RX) Datacom Interface Dual DB25 Connectors Support: DTE/DCE RS-232/V.28 X.21/V.11 RS-449/V.36 /V.10/V.11 EIA-530/V.10/V.11 EIA-530A/V.10/V.11 V.35/V.28. USB T3 E3 interfaces - DS3/E3 75O BNC (Tx, Rx) Ports DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert MCX External Clock Ports USB 3.0 and 2.0 Ports Internally powered by Power Supply 1000 Mbps Ethernet Port PacketExpert™ 1G interfaces (1 unit) - 4 Total Ethernet ports 2 10/100/1000 Base-T Electrical only 2 1000 Base-X Optical OR 10/100/1000 Base-T Electrical Single Mode or Multi Mode Fiber SFP support with LC connector Refer to Packet /Ethernet Series Price Lists SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, ATX Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information PTE025 Refer to Datacom Price List

mTOP™ Probe

mTOP™ VQuad™ Dual UTA HD Probe

VQuad™ Dual UTA HD mTOP™ Probe (Front Panel View) VQuad™ Dual UTA HD mTOP™ Probe (Rear Panel View)	Length: 10.4 inches Height: 3 inches Width: 8.4 inches DUAL UTA HD interfaces (Side 1 & 2) - 3.5mm In/Out Jacks (Balanced Audio) RJ-11 Jacks (FXO) RJ-22 Jacks (Handset/Handset Base) 3.5mm Audio (Monitor) Dual RJ-45 PTT Jacks Dual RJ-45 GPS (In/Out) Jacks Bluetooth® Antennas External USB based Wi-Fi adaptor SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, 12V/ 3A Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Two HDMI ports Order information - MT005/MT005E VQT251 DUAL UTA Options VQuad™ Options Refer to VQT Price Lists

mTOP™ 1G Multi-Port Ethernet Probe

PacketExpert™ 1G mTOP™ Probe (Front Panel View) PacketExpert™ 1G mTOP™ Probe (Rear Panel View)	Length: 10.4 inches Height: 3 inches Width: 8.4 inches PacketExpert™ 1G interfaces (1 unit) 4x Total Ethernet ports 2x 10/100/1000 Base-T Electrical only 2x 1000 Base-X Optical OR 10/100/1000 Base-T Electrical Single Mode or Multi Mode Fiber SFP support with LC connector External USB based Wi-Fi adaptor SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, 12V/ 3A Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Order information - MT005/MT005E PXE100 PacketExpert Options Refer to Packet /Ethernet Series Price Lists

mTOP™ 10G/1G Multi-Port Ethernet Probe

PacketExpert™ 10GX mTOP™ Probe (Front Panel View) PacketExpert™ 10GX mTOP™ Probe (Rear Panel View)	Length: 10.4 inches Height: 3 inches Width: 8.4 inches PacketExpert™ 10GX (PXN100) interfaces 4x 1G Base-X Optical OR 10/100/1000 Base-T Electrical 2x 10G Base-SR, -LR -ER Optical option 2 x 100 Mbps Base-FX optical interface Single Mode or Multi Mode Fiber SFP support with LC connector Optional 4-Port SMA Jack Trigger Board (TTL Input/Output) External USB based Wi-Fi adaptor SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, 12V/ 3A Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Order information - MT005/MT005E PXN100 PacketExpert™ Options Refer to IP-Ethernet-Testers-PacketExpert-Platforms

T1 E1 mTOP™ Probe & Datacom Tester

mTOP™ T1 E1 FXO FXS Probe (Front Panel View) mTOP™ T1 E1 FXO FXS Probe (Rear Panel View) mTOP™ Probe T1 E1 Datacom Tester (Front Panel View) mTOP™Probe T1 E1 Datacom Tester (Rear Panel View)	Length: 10.4 inches Height: 3 inches Width: 8.4 inches USB tProbe T1 E1 interfaces 2x RJ-48c T1/E1 Connectors 1x MCX Coaxial External Clock Connector Power LED USB FXO FXS interfaces 2x RJ-11 2-wire FXO FXS ports 4x 3.5 mm Balanced (Stereo) or Unbalanced (Mono) Audio Jacks (TX & RX) Datacom Interface Dual DB25 Connectors Support: DTE/DCE RS-232/V.28 X.21/V.11 RS-449/V.36 /V.10/V.11 EIA-530/V.10/V.11 EIA-530A/V.10/V.11 V.35/V.28. External USB based Wi-Fi adaptor SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, 12V/ 3A Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Order information - MT005/MT005E PTE001 SA000C T1 E1 Analyzer Options Refer to T1 E1 Price List

mTOP™ T3 E3 Probe

mTOP™ T3 E3 Probe (Front Panel View) mTOP™ T3 E3 FXO FXS Probe (Rear Panel View)	Length: 10.4 inches Height: 3 inches Width: 8.4 inches USB T3 E3 interfaces DS3/E3 75O BNC (Tx, Rx) Ports DS1/E1 RJ-48-c (Tx, Rx) for Drop/Insert MCX External Clock Ports USB 3.0 and 2.0 Ports Internally powered by Power Supply 1000 Mbps Ethernet Port External USB based Wi-Fi adaptor SBC specifications - Intel Core i3 or optional i7 NUC Equivalent, Windows® 11 64-bit Pro Operating System USB 3.0 and USB 2.0 Ports, 12V/ 3A Power Supply USB Type C Ports, Ethernet 2.5GigE port 256 GB Hard drive, 8G Memory (Min) Order information - MT005/MT005E TE3001 T3 E3 Analyzer Options Refer to T3 E3 Price List

mTOP™ OC-3/12 STM-1/4 LightSpeed1000™ Probe
