VoIP Testing using VQuad™

VoIP Testing using VQuad™

Overview

Testing on the extreme end-point of a VoIP softphone network has become a priority for many service providers. This method of testing represents what an end user is actually experiencing.

Voice quality testing within VoIP networks is growing; a major concern is testing VoIP softphones that will be used with VoIP networks. GL’s VQuad™ with VoIP option along with Voice Quality Testing (VQT PESQ) software provides the ability to perform manual or automated Wideband audio tests using HD codecs on the VoIP network.

The VQuad™ provides direct connection to the VoIP network with up to 12 instances connected simultaneously. Using the VQuad™ software, the user may configure automatic call control (SIP protocol) along with automatic generation / reception of voice files. Path confirmation using digits or frequency tones is also available in an automated or manual operation.

The VQuad™ along with the Dual UTA HD can connect to a VoIP network in several ways including through an ATA (the Dual UTA HD simulates the analog phone), through a Softphone (the Dual UTA HD provides Balanced I/O ports), via wireless (the Dual UTA HD connects to any mobile phone using Bluetooth technology), and through the customer’s phone itself (the Dual UTA HD can replace the handset of ANY Analog, Digital, or VoIP phone). The VQuad™ can also act as an end point and directly connect to the VoIP network via SIP protocol.

SIP Call Control within VQuad™ is capable of handling multiple SIP cores (4 SIP Core), and supports up to 12 User Agents. The VQuad™ when simulating the VoIP end point User Agent or the Analog 2-wire Phone supports full Call Control included supplementary services such as 3-Way Calling. The VQuad™ also supports path confirmation, send/record voice synchronously for VQT PESQ results and full scripting of the test. Additional measurements include Round Trip Delay, One Way Delay and a variety of Echo testing.

VQuad™ supports Data Testing including TCP, UDP, VoIP, HTTP, FTP, DNS and SMS. The Data Tests are configured via the VQuad™ scripting and support the PC Ethernet connection (wired, WiFi, Broadband 3G/4G) or mobile device. Using the optional GL’s Mobile Device Controller application and the supporting downloadable apps on the Smartphones (iPhone, Android), the VQuad™ can remotely perform the data tests when the phone is within a voice call or outside a voice call.

VQuad™ with Dual UTA HD can be purchased as a single unit (VQT280), which includes VQuad™, Dual UTA HD, and PC. Control via Ethernet Remote Desktop (with support for mouse/keyboard).

Main Features:

  • Connect at endpoint of a VoIP network
  • Supports WideBand (WB) audio using HD codecs such as G.722 and AMR WB.
  • All VoIP Codec are supported including -
    • G.711 (µ-law/A-law - 64kbps)
    • G.711 App II (ALaw and µ-Law with VAD)
    • G.729, G.729B (8 kbps)
    • G.726 (5 bit 40 kbps/4 bit 32 kbps/3 bit 24 kbps/2 bit 16 kbps)
    • G.726 (40/32/24/16 kbps with VAD)
    • GSM (13.2 kbps)
    • AMR (4.75kbps, 5.15kbps, 5.9kbps, 6.7kbps, 7.4kbps, 7.95kbps, 10.2kbps, 12.2 kbps) (requires additional license)
    • AMR WB (Wideband codec - 6.60kbps, 8.85kbps, 12.65kbps, 14.25kbps, 15.85kbps, 18.25kbps, 19.85kbps, 23.05kbps, 23.85 kbps) (requires additional license)
    • EVRC (Rates - 1/8, ½ and 1), EVRC0 (requires additional license)
    • EVRCB (Rates - 1/8, ¼, ½ and 1), EVRCB0 (requires additional license)
    • EVRC_C (requires additional license)
    • SMV (Modes - 0, 1, 2 and 3- Available if licenses are provided or owned, please call GL)
    • iLBC (15.2kbps and 13.33kbps)
    • SPEEX (Narrow Band, Wideband))
    • G.722
    • G.722.1 (24 kbps and 32 kbps Wideband)
    • GSM HR (rate – 5.6kbps, packet time multiples of 20msec.)
    • GSM EFR (rate - 12.2kbps, packet time fixed at 20msec.)

    Visit Voice Codecs webpage for more comprehensive information.


  • Supports outband DTMF/MF digits for RFC4733 and RFC2833.
  • Impair outgoing traffic using a noise file or user-defined white noise
  • Connect directly to ATA, Softphone, Phone Handset, or Wireless via Bluetooth®
  • Fax generation for 2-wire FXO and 4-wire analog interfaces
  • Connect at endpoint of a VoIP network using SIP protocol with user-defined parameters for Authentication and Proxy
  • SIP Call Control within VQuad™ is capable of handling up to 4 SIP cores, and each SIP core supports up to 12 User Agents.
  • Up to 12 interfaces connected to a single VQuad™ system
  • Manual or Automatic call control (SIP protocol) with user-defined parameters for authentication and proxy
  • Automatic send/receive of voice files over already established calls
  • Round Trip Delay, One Way Delay, Echo measurements, and Data Testing
  • Compact and portable solution for testing end-to-end voice quality
  • GL VQT Automatic Mode allows automatic execution of the VQT algorithms (PESQ LQ/LQO/WB)
  • Additional measurements include Clipping, Jitter, Latency, Noise and Signal Levels


Voice Quality Testing (VQT) Results

GL's VQT may be executed automatically (real-time and/or post-processing) or manually by entering a Reference File and Degraded File. Regardless of how GL's VQT is initiated, algorithms for POLQA and PESQ MOS and PESQ LQ are executed simultaneously for the two voice files and results are shown in graphically as well as in tabular format. GL’s VQT supports POLQA WB Analysis (ITU-P.863). GL's VQT also displays cumulative statistics for large scale testing over long periods of time.

VQT Measurement Results
VQT Measurement Results
VQT Cumulative Statistics
VQT Cumulative Statistics


SIP Call Control

VQuad™ allows users to configure and simulate a user agent (UA) for l SIP call generation and reception using public URL and contact IP addresses. VQuad with SIP supports registration with a registrar server. VQuad™ allows user to place calls between VoIP phones with different user agents.

SIP call control settings

The user can configure some codecs for call generation or reception through "CodecOptions.ini" file located in the installation folder. This file contains options such as packetisation time (ptime), payload type, and codec options. It also allows the user to select the codecs to be included in the test scenario, i.e, if the test requires only A-law or u-law offered then, those can be selected and the others omitted.

The codec packaging details can be edited in the CodecOptions.ini file directly, with the following restrictions

  • [CODEC_TYPE] - Allows user to select codecs to be offered in call setup.
  • [Packetisation_Time] - Minimum Packetisation time varies for codecs.
  • Payload Type _ Unique value for each codec

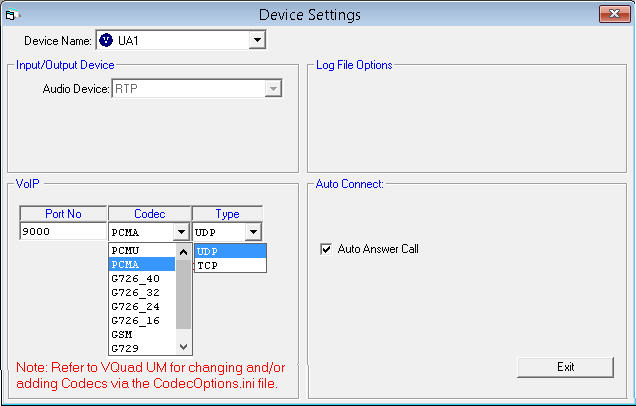

VoIP Device Settings
VoIP Device Settings

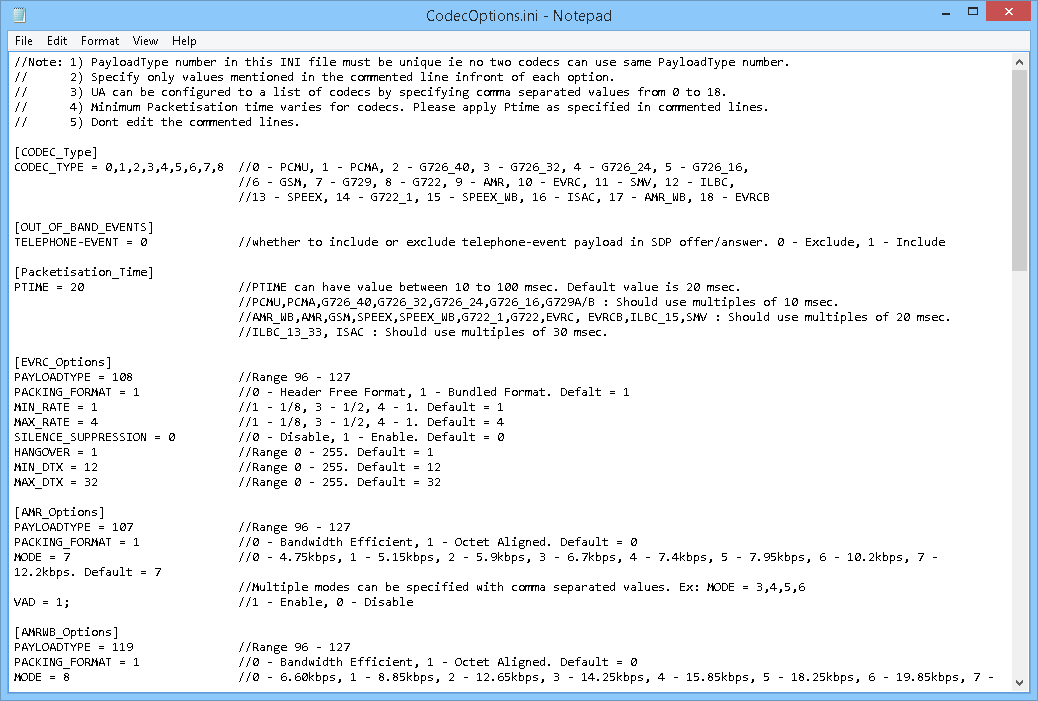

CodecOptions.ini File Configuration
CodecOptions.ini File Configuration

Additional Information



Resources

Item No. Item Description
VQT010 VQuad™ Software (Stand Alone)
VQT013 VQuad™ with SIP (VoIP) Call Control
VQT015 VQuad™ with T1 E1 Call Control
VQT280 VQuad™ Probe HD (with Dual UTA HD)

Accessories
Power Adapter 12V, 3Amps (1)
3.5 mm jack audio cable (2)
RJ 11 cable (2)
VQT281 VQuad™ Probe HD w/o Dual UTA HD
VQT285 VQuad™ Probe HD Upgrade
  VQuad™ Miscellaneous
VQT601 Mobile Device Controller (MDC) Software
VQT022
VQT022a
VQuad™ Fax Emulation (2 simultaneous ports)
VQuad™ Fax Emulation (8 simultaneous ports)
VQT251 Dual UTA HD Next generation Dual UTA with FXO Wideband support

Accessories
USB Cable 2.0 (1)
3.5 mm jack audio cable (2)
RJ 11 cable (2)
VQT252 Dual UTA HD – Bluetooth Option
VQT461 Dual UTA HD Smartphone ACC Cable
  VQT Analysis
VQT002 Voice Quality Testing (PESQ only)
VQT006 VQT w/ POLQA Server license (no limitations)
VQT007 VQT POLQA v3, server license for 20 nodes
VBA032 Near Real-time Voice-band Analyzer
EMU037 Echo Measurement Utility (EMU) Software
VQT040 Webviewer™

* Specifications are subject to change without notice.
