GPRS Protocol Analysis (Gb & Gn)

GSM, GPRS, and UMTS Network Architecture


Overview

GPRS Service was introduced (in the late 90's and early 2000's) to enhance data carrying capabilities of the basic GSM Network.

GL Communications supports the following types of GPRS analyzers:

  • For GPRS over IP transport
    • GPRS Protocol Analysis over IP (PKV103) is available as an optional module within PacketScan™ analyzer (PKV100) or PacketScan™ HD analyser (PKV120/PKV122) upon additional licensing. With this additional license, the PacketScan™ permits continuous monitoring of GPRS data connectivity over Gb, and Gn/Gp interface. (Pre-requisites: Hardware Dongle, and Windows® System)
  • For GPRS over TDM transport
    • T1 E1 Real-time GPRS Analyzer (XX155) is available as an optional module within T1E1 Analyzer. With this software, the T1 E1 Analyzer permits continuous real-time monitoring of GPRS data connectivity over Gb interface. (Pre-requisites: GL's field proven E1 or T1 internal cards or USB based external units, required licenses and Windows® System)
    • T1 E1 Offline GPRS Analyzers (OLV155) is available as an independent software that allows to decode and analyze pre-recorded traces of GPRS data over Gb interface.  (Pre-requisites: Hardware Dongle, and Windows® System)

GL's GPRS Protocol Analyzer offers powerful features to capture, monitor, decode, and collect statistics of GPRS messages over IP and TDM. It provides valuable information about routing area update, PDP activations, and traffic patterns in the network.
The GPRS Protocol Analyzer when connected between SGSN and BSS elements of a GPRS network, permits the monitoring of Gb interface. Similarly, when connected between SGSN and GGSN elements, permits monitoring of the Gn/Gp interface.

Highlights

  • Supports filtering and search features based on parameters such as Data Link, Network Service, BssGp, LLC, Gprs Mobility/Session Mgmt, SMS, TOM and SNDCP
  • Summary view displays information such as DLCI, FECN, BECN, SAPI, CTL, Session Mgmt Message etc
  • For GPRS over T1 E1 Interface,
  • Streams can be captured on the selected time slots (contiguous or non-contiguous), sub-channels or full bandwidth. Frames may also be contained in either one, n x 64 kbps, or n x 56 kbps data channels.
  • Supports decoding of frames with FCS of 16 bits and 32 bits, or none.
  • Capturing filter based on length of frames (FISU - Length as 5 and LSSU - Length as 7) can be set.
  • Call Detail Recording feature includes data link groups that help in defining the direction of the calls in a given network and form logical groups comprised of unidirectional (either 'Forward' or 'Backward') data links.
  • Recorded trace files can be played back using HDLC Playback application.

Related Applications

Bridge and Monitor Connections

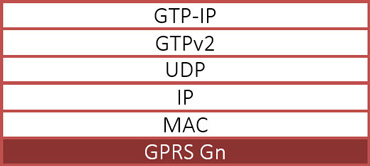

GPRS over IP

Supports decoding and monitoring of Gn and Gp control signalling used for mobility and session management between the SGSNs and GGSNs, and tunnelling of end-user data payloads in the backbone network.

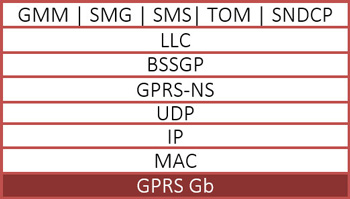

GPRS over TDM

Supports decoding and monitoring of Gb signalling that connects the BSS and the SGSN with the BSCs in TDM based GSM networks.



Supported Protocols Standard / Specification Used
SMG 3GPP TS 04.08 V7.19.0
SNDCP
(Subnetwork Dependent Convergence Protocol)
3GPP TS 04.64 V8.7.0
BSSGP 3GPP TS 08.18 V8.10.0
LLC
 (Logical Link Control)
3GPP TS 04.64 V8.7.0
GMM
(GPRS Mobility Management)
3GPP TS 04.08 V7.19.0
SMS 3GPP TS 03.40 V7.5.0 / GSM 03.38 version 7.2.0
TOM 3GPP TS 04.64 V8.7.0 (2001-12)-Annex B
NS (Network Service Frame Relay) GSM 8.16 ETSI TS 101 299 V8.0.0
GTP / GTPv2 / GTP
(GPRS Tunnelling Protocol)
3GPP TS 09.60 V7.9.0 / 3GPP TS 29.060 V6.5.0 / 3GPP TS 32.005 V3.7.0 and 3GPP TS 32.015 V3.12.0
LAPF Q.922

Screenshots

GPRS Over IP

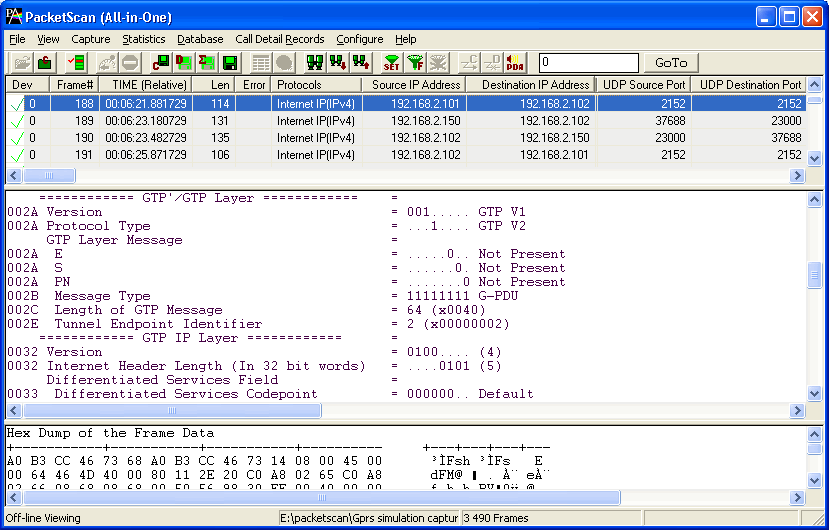

Summary, Detail, Hexdump view

Protocol Filters

CDR and Statistics View

GPRS Over TDM

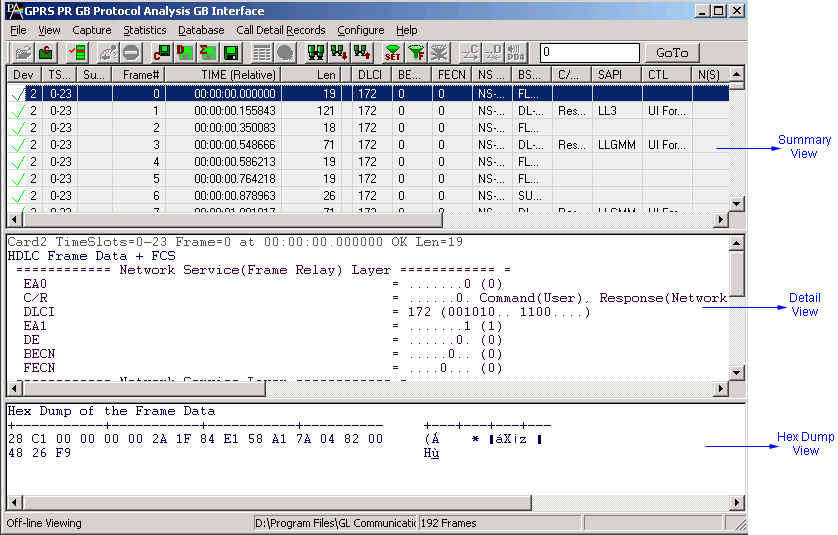

Summary, Detail and Hex dump Views

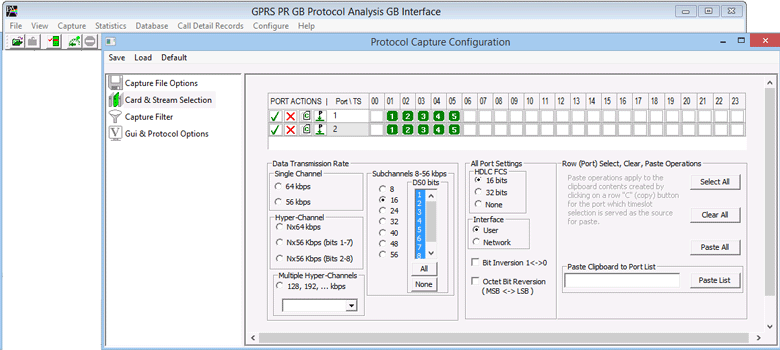

Stream selection

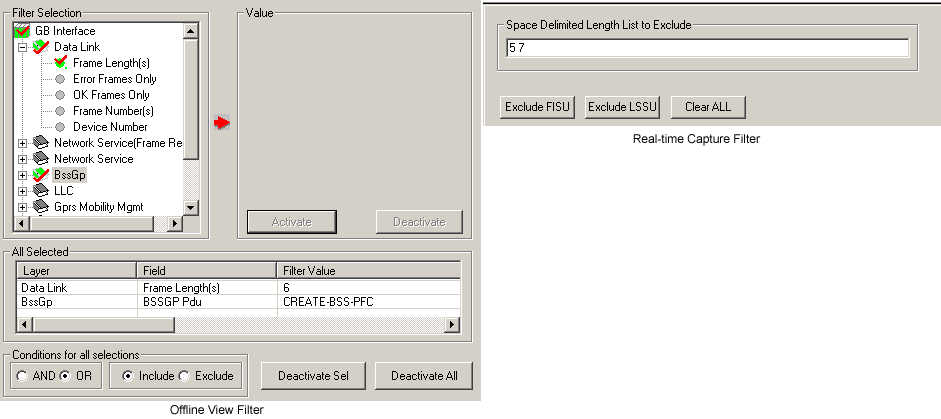

Protocol Filters

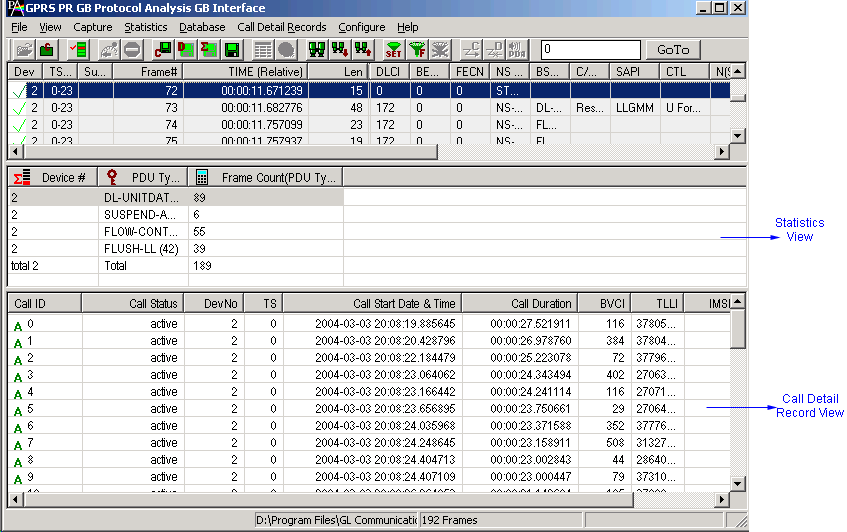

 Statistics and Call Detail Record View


Enhanced Trace Saving Options




Buyer's Guide

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), UTA or UEA (USB Units), HUT or HUE (Universal Cards), and HDT or HDE (HD cards) depending upon the hardware.

Item No. Item Description
XX155 GPRS Protocol Analyzer
OLV155 Offline GPRS Protocol Analyzer
