Latest Enhancements to GL's T3 E3 Analyzer

Welcome to another February 2016 issue of GL Communications' Newsletter providing information and insight into our latest software enhancement  Channelized T3 E3 Analyzer. This enhancement permits direct access to all 56 T1s and/or all 32 E1s in a T3 or E3, along with the unchannelized features previously available.

Channelized T3 E3 Analyzer

Overview

GL's USB based T3 E3 Analyzer is one of the smallest and lightest pods (weighing only 1.75 lbs) capable of processing signaling, voice, and data on T3 and E3 lines. It includes various signal testing capabilities such as monitoring & generating alarms, error insertion, protocol analysis, and simulation of Unchannelized (Unstructured) and Channelized (Structured) T3 E3 Traffic.

  • Analysis/Emulation of T3 (44.736 Mbps) and E3 (34.368 Mbps),
  • Analysis/Emulation of Unchannelized (Unstructured) T3 or E3 for ATM, PPP, HDLC, and Frame Relay
  • Record/Playback of entire T3 or E3
  • Analysis of all 56 T1s (1.544 Mbps each), or 32 E1s (2.048 Mbps each)
  • Analysis of Fractional T1s and E1s, N x T1s or N x E1s,
  • Analysis of any combination of DS0s (64 kbps each) within the T1s or E1s,
    • 56 x 24 = 1,344 DS0s for T1 or 32 x 32 = 1024 DS0s for E1

The channelized option in the T3 E3 Analyzer uses a "software-only" approach, that  permits a small package to save power, space, and cabling.

  • Support direct access to all 2 x 28 T1s, 2 x 21 E1s on T3, and 2 x 16 E1s on an E3 line
  • All within a single PC, including differing T1 E1 framing formats, physical layer alarms, and payloads

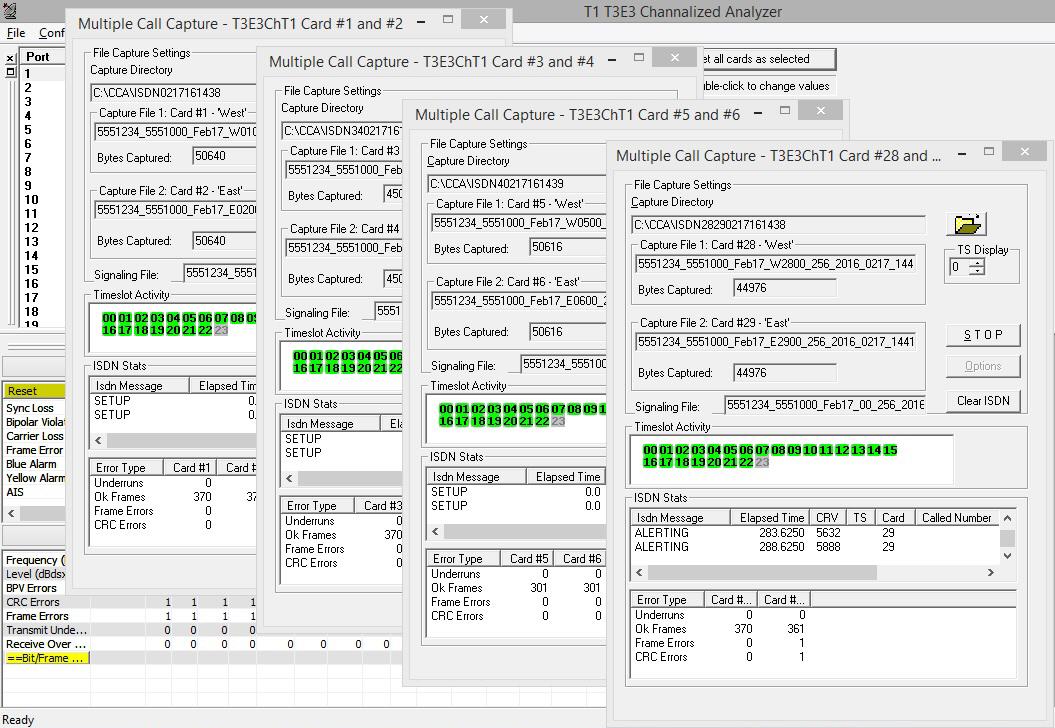

Capturing Multiple Calls on Channelized T3 E3 T1 Analyzer

Capturing Multiple Calls
on Channelized T3 E3 T1 Analyzer

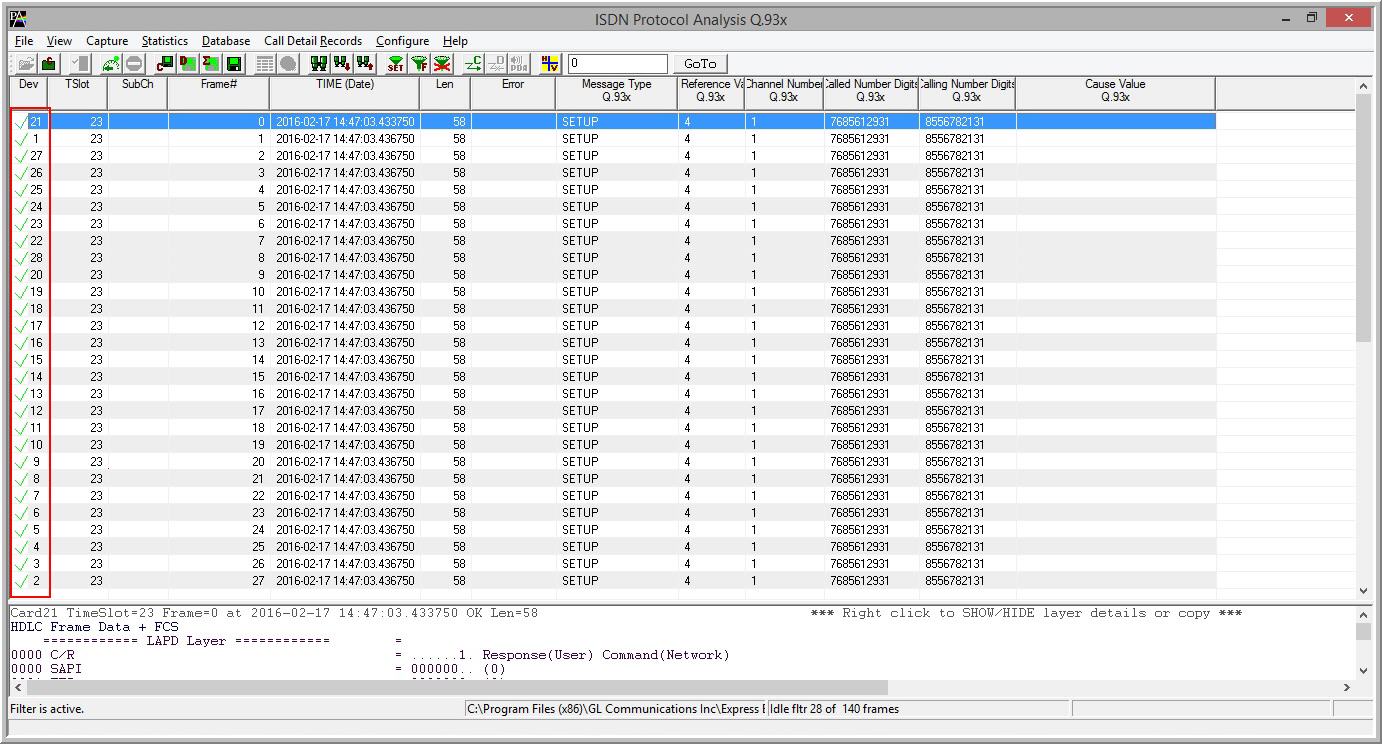

ISDN Signaling Information Analysis on Multiple T1's in Channelized T3 Analyzer

ISDN Signaling Information Analysis
on Multiple T1's in Channelized T3 Analyzer


Functional Procedure

Channelized T3E3 Working Principle

The T3 E3 hardware platform with associated T1 E1 Receive Server and Channelized T3 E3 Analyzer software can:

  • Capture, record, and monitor multiple T1 or E1 channels over Channelized T3 E3 links
  • Perform analysis of various signal types including voice, digits, tones, fax, modem, and raw data
T1 E1 Receive Server application within Channelized T3 E3 Analyzer acts as software based Multiplexer- Demultiplexer application:
  • Capable of channelization of captured T1 E1 signals into 56 independent T1 channels, 42 independent E1 channels in T3 or 32 E1 channels in E3
  • The channelized streams forwarded to T3 E3 Channelized T1 E1 Analyzer software for analyzing frames per port

Important Features

  • Provides support for channelized T3 E3 to T1 E1
  • Supports up to 56 T1s and 42 E1s channels per T3 E3 port
  • Supports structured and unstructured T1 E1 transmission and reception
  • Supports monitoring in all  "basic applications" and "special applications" for T1 or E1 channels
  • Supports Protocol Analysis of structured protocols - HDLC, ISDN, CAS, and more
  • Supports carrying T1 E1 alarms in channelized T3 E3 lines
  • Comprehensive analysis of voice, data, fax, protocol, analog, and digital signals, including echo and voice quality testing
  • Extracting T1s E1s from multiple T3 E3 ports is supported
  • User selectable T1 and E1 channels to multiplex. The channel numbering same as in De-multiplexing
  • Unused channels treated as unequipped
  • Broadcasts the selected T1 E1 channel data on all the 42/32 E1's or 56 T1's
