IP Multimedia Subsystem (IMS) Network Protocol Analyzer
GL’s IMS Protocol Analyzer within PacketScan™-All IP Protocol Analyzer is capable of capturing, decoding and analysing all SIP packets used to setup sessions as well as the Diameter signaling used for accessing subscriber data and charging data on IMS core networks.
Request a Demo / Quote Brochure
Overview
Internet Protocol (IP) Multimedia Subsystem, popularly known as “IMS”, is built on Session Initiation Protocol (SIP) as the base to further support packaging of voice, video, data, fixed, and mobile services on a single platform to end users. It provides a unique convergence platform for different types of networks – whether it is mobile, satellite, broadband, cable, and fixed networks, with a goal of building an efficient interoperating networks.
GL’s IMS Protocol Analyzer within PacketScan™-All IP Protocol Analyzer is capable of capturing, decoding and analysing all SIP packets used to setup sessions as well as the Diameter signaling used for accessing subscriber data and charging data on IMS core networks.
GL's IMS Protocol Analyzer is an optional module (PKV110) available with PacketScan™ analyzer (PKV100) or PacketScan™ HD analyzer (PKV120/PKV122) upon additional licensing. With this additional license, the PacketScan™ permits continuous monitoring of communication over IMS network over S6a, S6d, S13, Cx/Dx, Gx, Rx, Sh, Gy/Ro interfaces. Other interfaces such as Rf, Dh, Gq, Zh, Zn, Wa, Wd, Wx, Wm, Wg, Pr will also be supported by the application in near future.
GL’s PacketScan™ - an All-IP monitoring and analysis probe, along with NetSurveyorWeb™ allows centralized monitoring of entire LTE-IMS network.
Related Applications
| Supported Protocols | Standard / Specification Used |
|---|---|
| SIP | RFC 3261 |
| SIP Extensions | RFC 3262 - Reliability of Provisional Responses in the SIP. |
| RTP, RTCP | RFC 3550 |
| MEGACO | RFC 3525, RFC 3015 |
| S6 , S13 | 3GPP TS 29.272 V12.6.0 (2014-09) |
| Sh | 3GPP TS 29.329 V12.4.0 (2014-09) |
| Cx | 3GPP TS 29.229 V12.3.0 (2014-09) |
| Dx | 3GPP TS 29.229 V10.1.0 |
| Gx | 3GPP TS 29.212 V12.6.0 (2014-09) |
| Gq | 3GPP TS 29.209 V6.7.0 (2007-06) |
| Gy | 3GGP TS 32.225, 3GPP TS 32.299 & IETFRFC 4006), 3GPP TS 29.061 V10.3.0 |
| Rx | 3GPP TS 29.214 V14.1.0 (2016-09) |
| Rf | 3GGP TS 32.225 , 3GPP TS 32.299 and IETFRFC 4006),3GPP TS 29.061 V10.3.0 |
| Ro | 3GGP TS 32.225 , 3GPP TS 32.299 and IETFRFC 4006),3GPP TS 29.061 V10.3.0 |
| Zn | 3GPP TS 29.109 V10.0.0 (2011-03) and 3GPP TS 33.220 V10.0.0 (2010-10) |
| Zh | 3GPP TS 29.109 V10.0.0 (2011-03) and 3GPP TS 33.220 V10.0.0 (2010-10) |
| Dh | 3GPP TS 29.329 V11.0.0 |
| Wa | 3GPP TS 29.234 V10.1.0 (2011-06) |
| Wd | 3GPP TS 29.234 V10.1.0 (2011-06) |
| Wg | 3GPP TS 29.234 V10.1.0 (2011-06) |
| Wm | 3GPP TS 29.234 V10.1.0 (2011-06) |
| Wx | 3GPP TS 29.234 V10.1.0 (2011-06) |
| Pr | 3GPP TS 29.234 V10.1.0 (2011-06) |
Screenshots
Diameter Protocol Analysis

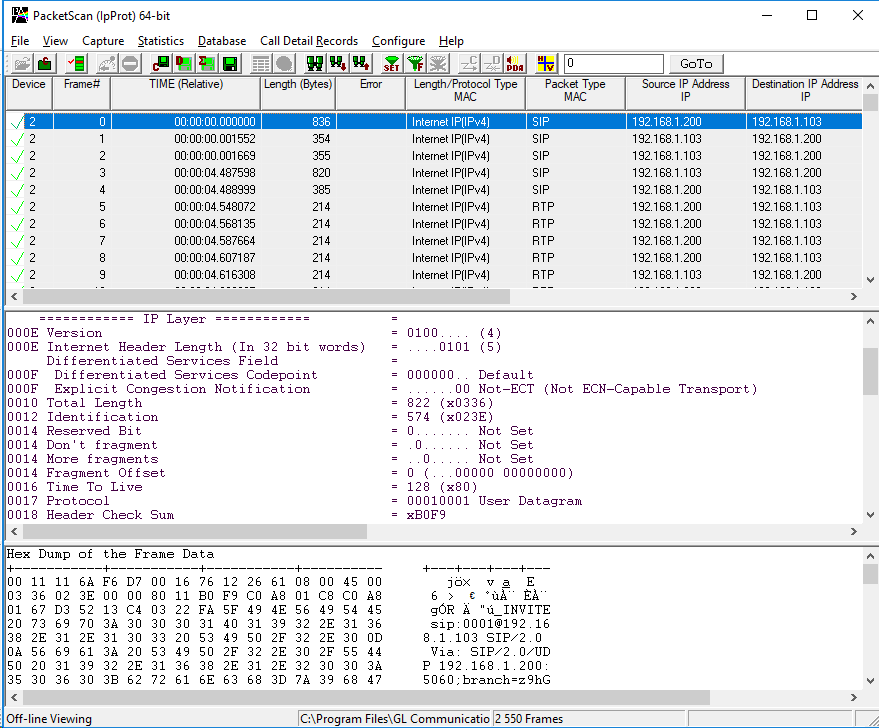

Summary, Detail, Hexdump view - SIP

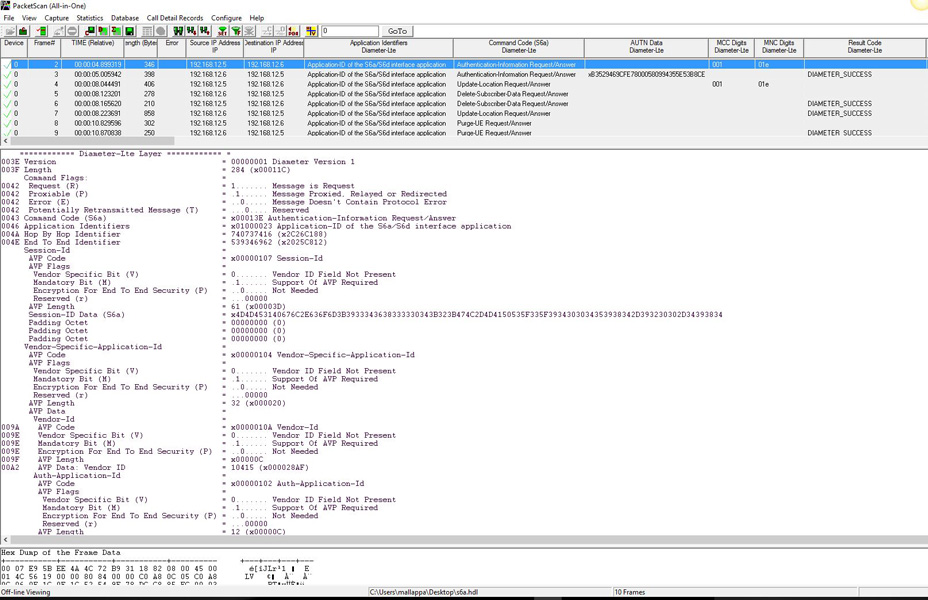

Summary, Detail, Hexdump view - Diameter

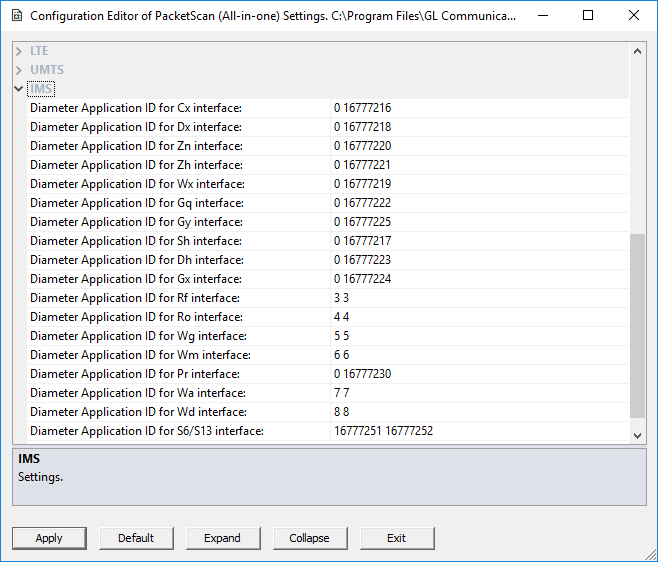

IMS Configuration Settings
Call Graph

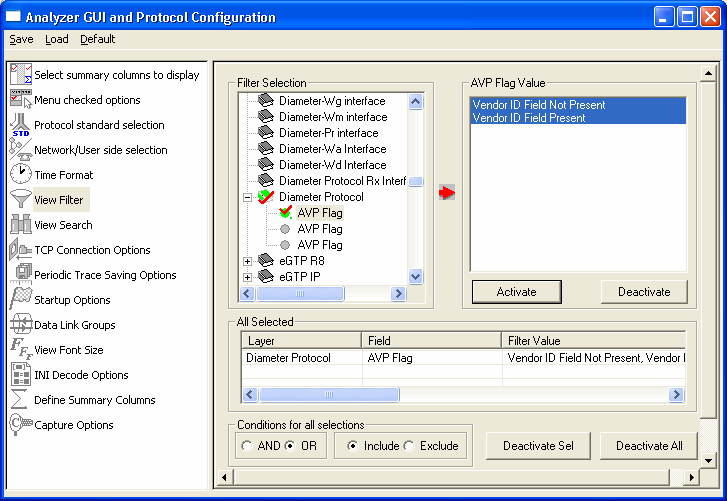

Protocol Filters
CDR and Statistics View
Resources
Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), XUT or XUE (Dual PCIe Express) depending upon the hardware.
| Item No. | Item Description |
PKV110 |
IMS Protocol Decodes (Optional with PacketScan™) |
| Brochures |
| PacketScan™ IMS Brochure |
| GSM Protocol Analysis Brochure |
| User's Guide |
| Quick Install Guide |
| Quick Verification Guide |
| Presentations |
| Protocol Analysis and Emulation - Presentation |
| Webinars |
IP Multimedia Subsystem - IMS Test Suite |
