QoS TEST SOLUTIONS

Voice / Video / Data

GL's Mobile Applications (IOS, Android)

Application : vMobile™

GL offers vMobile™ under its wide variety of Voice and Data Quality testing tools. The vMobile™ is a handheld ultra-portable device that brings true mobility to voice and data quality testing for any mobile phone and any mobile radio, changing the way automated drive and walk testing is performed. The vMobile™ is simple to setup and operate for running these tests in order to benchmark both mobile phone networks and mobile radio networks.

IOS Android
vmobile
Download
v2.0
vmobile
Download
v2.0

App Installation Instructions on iOS


Click on Console App icon to download and proceed with the installation.

Follow the steps below after installation is complete

  • Under Settings → General → Device Management → GL Communications
  • Click trust "GL Communications Inc"

For the first time when Console app is opened after trusting Console app, a pop up is opened with the title "Allow Console App to access your location", choose "Always Allow" from the option.

App Installation Instructions on Android


Click on Console App to download.

Follow the steps below to install.

  • After downloading vMobile.apk open File explorer (Eg. File Manager)
  • Select APK folder (APP Install Files (APKs))
  • Click on vMobile.apk file
  • Choose "Settings" from the File Manager dialog box
  • Enable "Allow from this source" option and "Accept" the warning message
  • Install the App and "Allow all permissions"

For the first time when Console app is opened, a pop up is opened with the title "Allow Console App to access your location", choose "Always Allow" from the option.

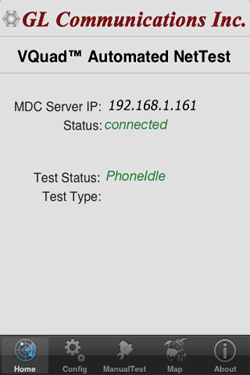

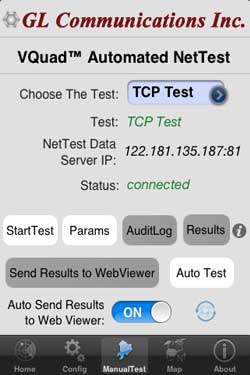

Application : GL NetTest

The GL NetTest provides automated and manual data/voice analysis of the mobile device network connection (3G, 4G, WiFi supported). Available analysis includes TCP, UDP, VoIP, HTTP, FTP, and DNS. This app is used in conjunction with GL's VQuad software/hardware for evaluating quality of service using a mobile device. The VQuad, along with the MDC (Mobile Device Controller), remotely and automatically responds to a user-specified request for analysis. Status/progress along with results of the analysis are transferred to the VQuad application along with the GL WebViewer central database. Using the WebViewer browser, all results along with GPS coordinates can be queried based on the specific mobile device.

As part of the analysis, GLNetTest utilizes VoIP to generate pre-defined calls for quality of service. GL NetTest also utilizes GPS to provide location coordinates with all results. It should be noted that while GL NetTest is in run mode, the battery life will be dramatically decreased.

IOS Android
IOS Application
Download
v4.11.8E
Android Application
Download
v3.10.5

App Installation Instructions


Click above icon to download "GLNetTest" IOS App and proceed with the installation.

Follow the steps below after installation is complete

  • Under Settings->General->Device Management->GL Communications
  • Click trust "GL Communications Inc"

For the first time when GLNetTest app is opened after trusting GLNetTest app, a pop up is opened with the title "Allow GLNetTest to access your location" , choose "Always Allow" from the options.

  • Only while Using the App
  • Always Allow
  • Don't Allow

Click above icon to download "GLNetTest" IOS App and proceed with the Upgrade.

App Installation Instructions


Click above icon to download the latest "GLNetTest" Android App (GLNetTest.apk) and proceed with the installation.

Follow the steps below,

  • After downloading GLNetTest.apk open File explorer (Eg. File Manager)
  • Select APK folder
  • Click on GLNetTest.apk file
  • Choose "Settings" from the File Manager dialog box
  • Enable "Allow from this source" option and "Accept" the warning message
  • Install the App and "Allow all permissions"

Note: If existing GLNetTest App version is earlier then v3.9.0, please uninstall the app and follow install instruction.

App Upgrade Instructions


Click above icon to download the latest "GLNetTest" Android App (GLNetTest.apk) and proceed with the installation.

  • After downloading GLNetTest.apk open File explorer (Eg. File Manager)
  • Select APK folder
  • Click on GLNetTest.apk file
  • Select "Install" to accept "Do you want to install an update to this existing application?""
VQuad IOS Application VQuad Android App

Application : VAC Agent

VAC Android Agent acts as an agent for performing Video Conference Testing on Android devices. This application is used in conjunction with GL's VAC Server and VQuad software for evaluating video quality over a given network. The VQuad™, along with VAC Server remotely and automatically responds to a user-specified request for testing and analysis.

Status/progress along with results of the analysis are transferred to the VQuad™ application and to the GL WebViewer central database.This verision of the agent application is supported only on Android versions later than 11.0.

Android
Android Application

App Installation Instructions


Click above icon to download the latest "VAC Agent" Android App (andriod-vac-agent.apk) and proceed with the installation.

Follow the steps below,

  • After downloading andriod-vac-agent.apk open File explorer (Eg. File Manager)
  • Select APK folder
  • Click on andriod-vac-agent.apk file
  • Choose "Settings" from the File Manager dialog box
  • Enable "Allow from this source" option and "Accept" the warning message
  • Install the App and "Allow all permissions"
