GL Announces Enhanced Protocol Simulation and Conformance Test Tool

Welcome to another July, 2014 issue of GL Communications' Newsletter providing information and insight into our enhanced Protocol Simulation and Conformance Test Tool referred to as Message Automation & Protocol Simulation (MAPS™) platform.

Message Automation & Protocol Simulation (MAPS™)

Overview

GL's Message Automation & Protocol Simulation (MAPS™) is a protocol simulation and conformance test tool that supports a variety of Wireless, IP, and TDM protocols such as SIP, MEGACO, MGCP, SS7, ISDN, GSM, MAP, CAS, LTE, UMTS, SS7 SIGTRAN, ISDN SIGTRAN, SIP I, GSM AoIP, Diameter and many others. MAPS™ tool covers solutions for both protocol simulation and protocol analysis. The application includes various test plans and test cases to support the testing of real-time entities. Along with automation capability, the application gives users the unlimited ability to edit messages and control scenarios (message sequences). "Message sequences" are generated through scripts.



Important Enhancements Introduced to MAPS™ Platform

64-bit Operating System Support MAPS™ platform has been enhanced to run as a true 64-bit application (this support covers IP, 2G, 3G and 4G protocols and excludes TDM protocols for now). The 64-bit version is introduced to enhance the signaling simulation performance to overcome the limitation of only 2 GB application memory in 32-bit processors.

Scheduler - Newly introduced scheduler feature helps user to automate the testing process. User can schedule the Load Generation, Call Generation and Call Reception at a specific start time. It uses the Master Configurations which contains pre-saved Test bed, Call Generation, and Load Generation configurations. Scheduler automatically loads the defined Master Configuration and executes the tests at scheduled time and duration.

Special Functions - There are several script based functions introduced to improve the test process. They are:

  • Send to DB: Test results such as Total Number of Calls Placed, No Failed calls, No Passed Calls, CPS, Memory utilized etc are accessible to scripts and are sent to database and can be accessed via web interface.  This allows user to monitor and analyze test from remote places. User can also customize the results.
  • Report Logging: User can generate and log customized reports directly from within the scripts for Error Events, Captured Errors, Call flow in PDF Format.
  • Multi-Interface Support: New style of Call Control scripting is introduced, which includes parent and child scripts along with sub scripts to handle complete call control procedures and traffic simulation. The call control scripting allows controlling multiple protocols independently, and makes multi-interface simulation easy.
  • Randomized Call Timers are introduced by which Call & Inter Call Duration can be randomized using various statistical distributions such as Normal, Uniform etc.
  • Dynamic IP/IP Spoofing process helps in adding or creating IP address to generate each call with different IP address from a single system which gives multihoming capability.
  • Multi-Core Processor Support: User can achieve improved performance by enabling multi-core processing. Each core initializes a protocol engine and contributes in enhancing the performance. For example, in MAPS™ SIP, user can generate signaling procedures at 250 CPS and 12000 simultaneous calls with single core and 1300 CPS and 70000 simultaneous calls with 6 cores.

Link Status Detection - Scripts are enhanced to detect MTP and SCTP link status. On Link Down status all running scripts will stop and no new scripts will be executed.

End-User Configurations - Signaling profiles have been updated with Enable Traffic option which provides the user to select specific traffic profiles like IVR, User-defined, Auto-Traffic File, Auto-Traffic Digits, Auto-Traffic Tones, and Codec options. The auto traffic profiles handle traffic automatically over established calls and the user-defined traffic profiles needs user intervention to initiate the traffic over established calls.

  • IVR Traffic: User can select IVR traffic (Only TxRx digit) to validate voice path during load generation.
  • User defined Traffic: User can select any of the traffic manually once call is established.
  • Record file names can be configured to have Sequential, Random or Date and Time format.
  • Tx File is automatically selected from the Voice Files directory based on Codec negotiated.

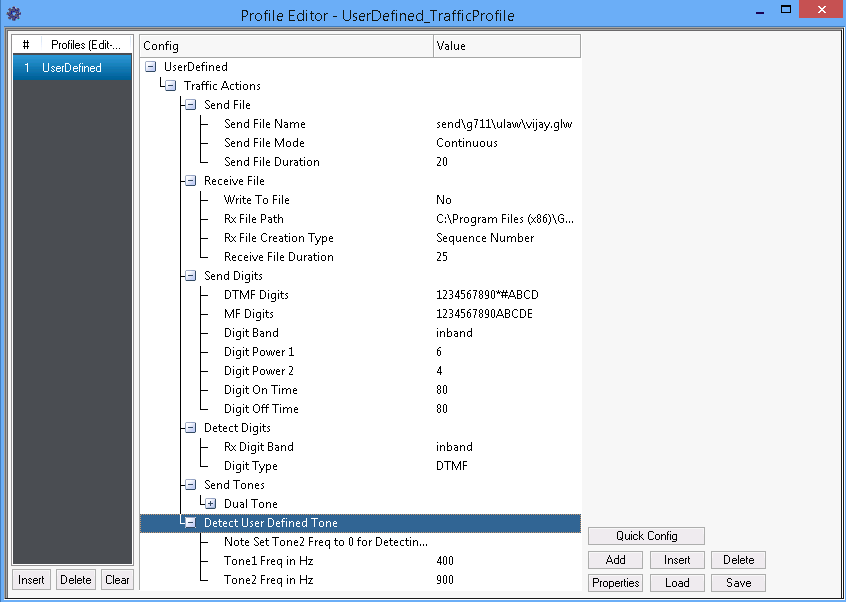

    User Defined Traffic Profile

    User Defined Traffic Profile

Statistics - Statistics provides vital information in terms of Call Statistics and Message Statistics and are briefly described below:

  • Message Statistics: Number of Tx and Rx Message Counts are displayed in the Statistics View.
  • Call Statistics: Statistics displays tabs for each call graph charts with 50:50 ratio with respect to window size. By default the statistics windows is set to display a PIE chart which can be refreshed every second.

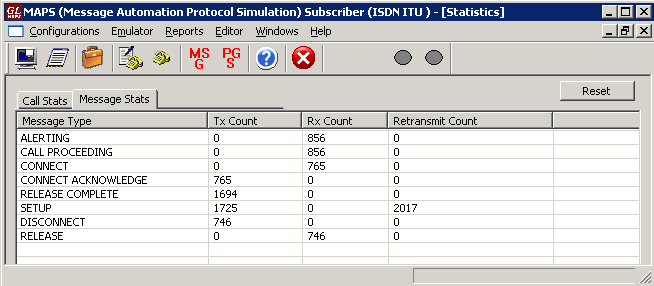

    Message Stats

    Message Stats

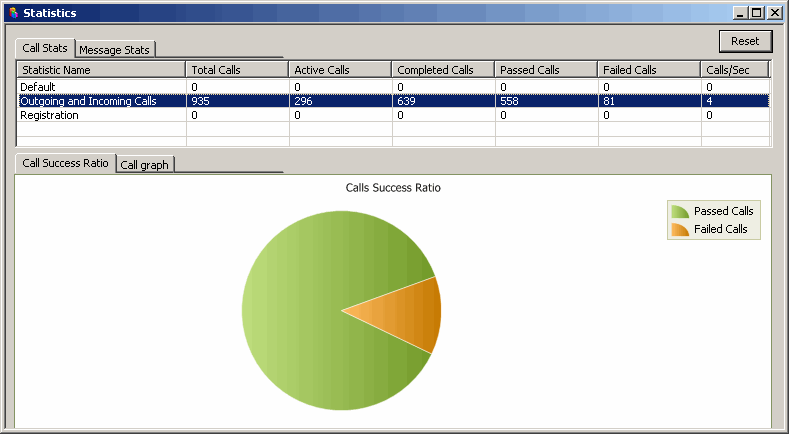

    Call Graph

    Call Graph



Enhancements Introduced to Individual Protocols

MAPS™ SIGTRAN Based Applications - Common changes to SS7 SIGTRAN, MAP IP, INAP IP, CAMEL IP, and BICC IP

  • SGP/ASP with M3UA,  M2UA, and M2PA signaling procedures (Auto-Initiated from ASP side when SCTP Link is UP)
  • Initiate Signaling Link Test Message (SLTM) on startup (Only for M2UA and M2PA)
  • SCCP User Adaptation (SUA) Transport Layer is added

MAPS™ SS7 SIGTRAN

  • Circuits can be mapped to physical T1 E1 Channels and Traffic can be simulated
  • Supports initiation of Group Reset / Circuit Reset procedure when SCTP link is up
  • Improved CIC Management Procedures are introduced to handle Circuit Blocking, Unblocking, Reset etc
  • CIC Configuration is made easy to user as below:
    Circuit Mapping: CIC mapped to Timeslot (With Circuit Selection Type Timeslot Based / CIC Based)
    Circuit Mapping: Only CIC (Without traffic, user can provide CIC range for each SSP, CIC is generated randomly or User Provided)
  • CLI Support coming soon

MAPS™ CAMEL IP

  • Enhanced with Pre-paid Balance Check and SMS Call Procedures support

MAPS™ GERAN and UTRAN Based Applications - Common changes to GSM A IP, GPRS, IuCS, IuPS and GnGP

  • Supports initiation of M3UA and SCMG procedures on start up

MAPS™ GSM AIP

  • Supports Mobile to Mobile voice call and SMS call procedures
  • Supports Handover procedures
  • Supports CC Layer and MM layer Invalid call scenarios
  • Supports 7 bit, 8 bit and UCS2 (16 bit) coding format supported for SMS procedures

MAPS™ IuPSGnGP and GPRS Gb

  • GTP Traffic Simulation is supported with Mobile Traffic core.

MAPS™ E-UTRAN based Applications (MAPS™ LTE S1), eGTP (S11 and S5/S8)

GTP Traffic Handler:

  • Supported Concurrent and Sequential transmission of HTTP files
  • Traffic can be verified using Tx Rx Counts
  • GTP Traffic performance is improved

MAPS™ VoIP Applications

MAPS™ SIP:

  • Includes support for ED-137B of EUROCAE (European Organization for Civil Aviation Equipment) standard
  • Simulates both Controller Working Position and Radio Media Gateway System
  • Supports RTP header extension format and generation of R2S-KeepAlive packets
  • ED-137 Node Type (CWP and RMG) selection brought to Global Configuration from RTPConfig.ini file
  • Includes support for IP Spoofing
  • Includes support for Early Media

MAPS™ SIP I:

  • Included UK protocol variant - ND1007:2001/07, PNO-ISC/SPEC/007 SIP and ISDN Interoperability Standards
  • Early Media Supported

MAPS™ MEGACO:

Media Gateway node of MAPS™ Megaco now makes use of Voice Gateway (part of T1 E1 analyzer) to convert TDM traffic to RTP and vice versa.

  • MAPS™ Megaco configured as Media Gateway Controller (MGC) node can control Trunking and Residential Gateways
  • Media Gateway to create TDM to TDM and TDM to RTP connections
