Windows Client/Server for Datacom Analysis

tProbe™ Datacom Analyzer/Emulator is enhanced to support the Windows Client/ Server (WCS) scripted test software, providing the capability of remote operation, automation, and multi-site connectivity.

  Brochure   Request a Quote


Windows Client/Server for Datacom Analysis

Overview

Data Communications generally refers to legacy interfaces of the recent past before packet technology became popular.  These interfaces and methods of communications are still out there.

GL's Datacom Analyzer/Emulator is an optional board available with GL's tProbe™ T1 E1 Analyzer or is also available as a standalone unit. It is designed for test and verification of data communications equipment and circuits - specifically serial interfaces that provide clock, data, and control signals. It provides software selectable modes to analyze and emulate DTE and DCE interfaces, non-intrusive monitoring for both synchronous (sync), and asynchronous (async) modes.

tProbe™ Datacom Analyzer/Emulator is now enhanced to support the Windows Client/ Server (WCS) scripted test software, providing the capability of remote operation, automation, and multi-site connectivity.

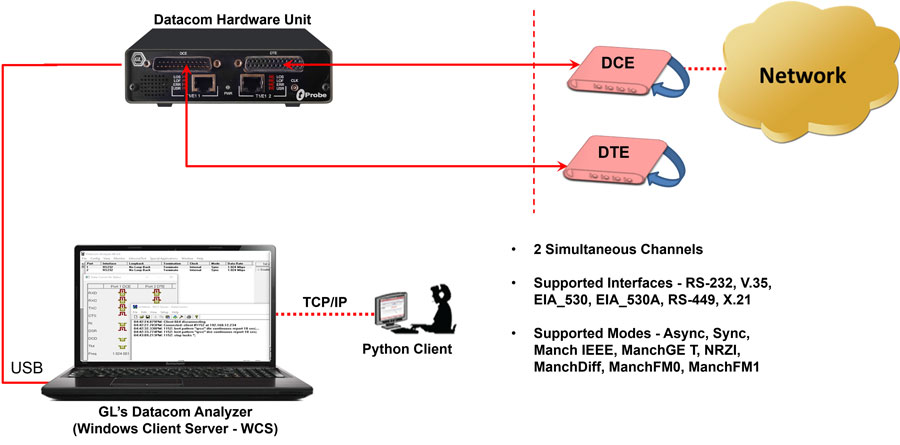

Windows Client / Server provides the capability of remote operation, automation, and multi-site connectivity to the Datacom Analyzer. Datacom in a server mode can be easily controlled through software clients at remote or local sites via TCP/IP sockets. Connectivity can be via Dial-Up, LAN, WAN, or more typically the Internet. Server software runs multiple tasks simultaneously at the request of the client software.

With additional licensing, WCS supports Enhanced BERT module. Enhanced BERT is a Server function used to measure the correctness of data received on Datacom against a repetitive fixed or pseudorandom pattern for the given transmission. The application generates/detects unframed BER patterns such as - QRSS, 25-1, 29-1, 211-1, 215-1, 220-1, 223-1, All ones, All zeros, 1:1, 1:7, 3 in 24, CSU Loop-Up (0001), CSU Loop-down (001), NIU Loop-UP (11000), and NIU Loop-Down (11100), and user-defined patterns in real-time. Supports predefined error insertion rate and user defined error rates ranging from 0.01 to 1e-009.

GL provides Pythonclient along with the server. Client is compatible with any OS, including UNIX, Linux and Windows. Other environments commonly used for client development include Perl, MatLab, Visual Basic, and LabView.



Key Features

  • DTE or DCE emulation mode
  • SYNC clock source and sense selection
  • Sync BER from 300 b/s to 16.384Mbps and Async BER from 300 b/s to 115.2Kbps
  • Supports NRZ, FM0, FM1 and Differential Manchester encoding schemes
  • Supported Line interfaces - V.24, V.35, X.21, RS-449, RS-485, EIA-530 and EIA-530A
  • Allows user to define custom frequency data rate for all encoding options
  • Generates/detects unframed BER patterns such as - QRSS, 25-1, 29-1, 211-1, 215-1, 220-1, 223-1, All ones, All zeros, 1:1, 1:7, 3 in 24, CSU Loop-Up (0001), CSU Loop-down (001), NIU Loop-UP (11000), and NIU Loop-Down (11100)
  • The application can automatically insert logic and BPV errors at regular or single intervals of time
  • Supports predefined error insertion rate ranging from 10-2 to 10-9
  • Generates numerous static bit patterns
  • Events can be logged for extended periods. This information is recorded in *.CSV file formats
  • Supports Python client scritpting
  • Environments commonly used for client development include Perl, MatLab, Visual Basic, and LabView
  • Windows Client / Server provides the capability of remote operation, automation, and multi-site connectivity


Sample Commands

WCS Enhanced BERT Commands:
bert pattern "qrss" dte1 invert continuous report 10 sec; // Pseudo-random pattern inverted
bert pattern 0xd5 dte continuous report events; // User-defined hex pattern
bert pattern "qrss" dte er 5e-7 continuous report 10 sec; // Pseudo-random pattern with error rate

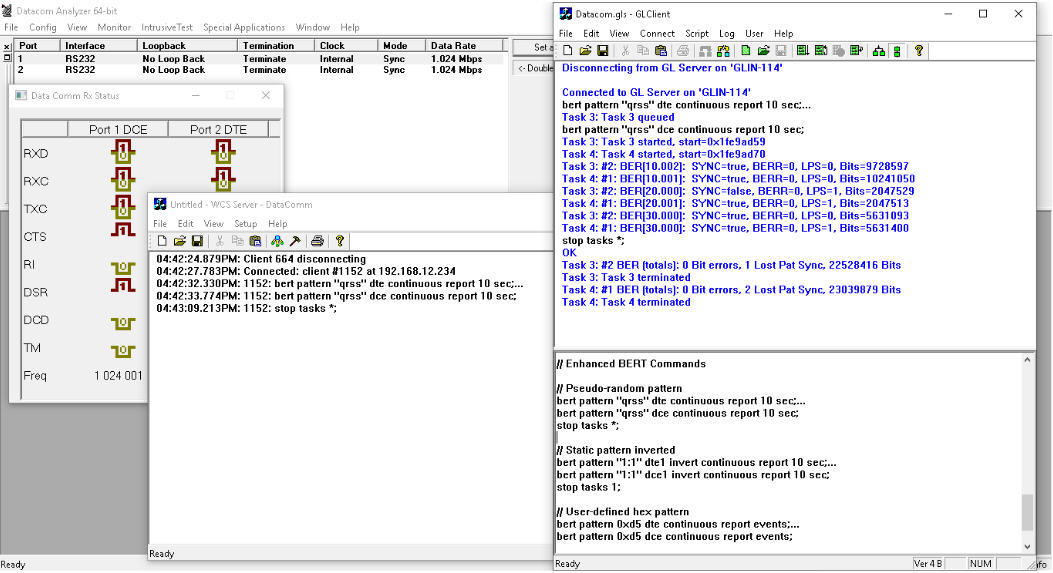

GLClient executing Enhanced BERT module scripts

GLClient executing Enhanced BERT module scripts

Configuring DTE and DCE Simulation

WCS commands are used to configure DTE and/or DCE Interfaces for Loopback, CTS, RTS, DSR, DTR, DCD, RI, RL, TM, LL, Clock settings, Data Rates, Sync and Async mode, Async communications parameters such as Data Bits, Parity Bits, Stop Bits and to get the Signal Line Status as well.

WCS Datacom Commands:

set dc interface rs232 #*;
set data rate 115.2 kbps #*;
set data bits 7 #*;
set parity bits even #*;
set async comm parms 8,none,1 #*; // Restore sensible setting
get txd, rxd, txc, rxc status #*; // txd fails for dce, rxd fails for dce

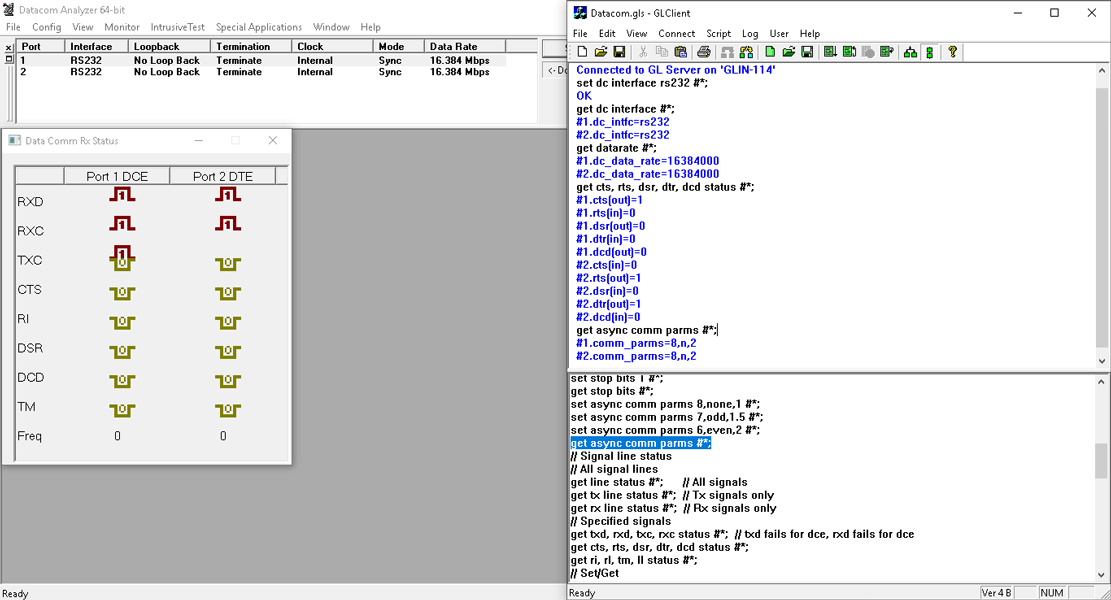

GLClient performing Datacom interface configuration

GLClient performing Datacom interface configuration

For additional syntax to download the sample scripts.



Resources

Please Note: The XX in the Item No. refers to the hardware platform, listed at the bottom of the Buyer's Guide, which the software will be running on. Therefore, XX can either be ETA or EEA (Octal/Quad Boards), PTA or PEA (tProbe Units), XUT or XUE (Dual PCIe Express) depending upon the hardware.

Item No. Item Description
PTE002 Datacom Only Analyzer Software for tProbe™ (with DTE and DCE Ports) requires PTE025;
Basic T1 or E1 software is NOT required

Accessories
By default, includes 2-wire FXO and FXS Optional Board (only Hardware) (1)
USB 2.0 Cable (1)
5 V power adapter (1)
Short Cross over cable (1)
RJ 11 cable (2)
PTE025 Data Communications Board for Interfaces RS-232C, RS-449, RS-422, RS-423, EIA-530, V.35 Interfaces
Includes basic client server scripted control software for precise and sequential control of Datacom features and functions.

Accessories
By default, includes 2-wire FXO and FXS Optional Board (only Hardware) (1)
USB 2.0 Cable (1)
5 V power adapter (1)
Short cross over cable (1)
RJ-11 cable (2)
Related Software
XX019 Tx/Rx File Utility
XX020 Record and Playback of Files
XX051 Synchronous Trunk Record Playback
XX031 Enhanced T1 / E1 Call Capture/Analysis Software
XX068 Semi-Automated and Scripted Echo Canceller Testing Suite
XX610 File based Record/Playback
XX620 Transmit/Detect digits
XX630 DSP Functionality
XX634 Multi-Channel HDLC Emulation and Analysis & File based High Throughput HDLC Record/Playback
XX635 PPP Emulation and Analysis
XX636 MC-MLPPP Emulation and Analysis
XX640 File based HDLC Record/Playback
XX641 File based HDLC Remote Record/Playback
XX650 File based HDLC Record/Playback over SA-bits
XX660 File based Record/Playback over FDL
XX680 Traffic Classifier
